Product Details:
|
| Size: | 18.5 Inch | Backlight Technology: | Led |
|---|---|---|---|
| Frequency Of Refresh: | 60Hz | Power Input: | DC 12V3A |
| Touch Point Number: | No Touch | Luminance: | 250cd/cm2 |
| Display Color: | 16.7M Colors | Response Time: | 25ms(GTG) |
| High Light: | GTG Infrared Touch Screen Monitors,Infrared Touch Screen Monitors IP65,Open Frame Touchscreen Monitor DVI |
||
PRODUCT DESCRIPTION

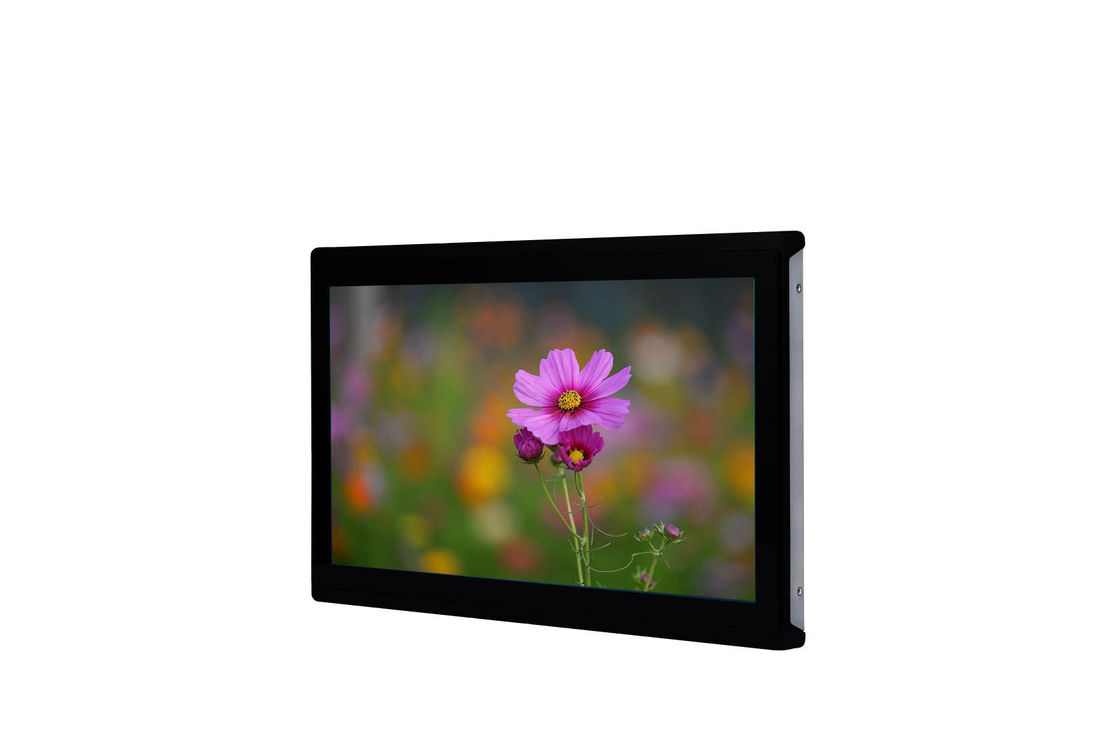

Industrial IP65 Black Color Infrared 18.5 Inch Open Frame Touchscreen Monitor
LY-B185 Monitor HD display color realistic, excellent workmanship and quality assurance, simple wireless space saving, ergonomic design is stable and reliable, intelligent touch operation of writing is smooth, touch software, widely used.
SPECIFICATION
Backlight technology:Led
Luminance:250 cd/m2
Contrast ratio:Horizontal: 178 / Vertical: 178
Response time:25ms(GTG)
Display color:16.7M Colors
Display resolution:1388*768 (16:9)
Frequency of refresh:60Hz
Input resolution:1388*768@ 60Hz
Junctor:VGA / DVI / HDMI
Interlinkage:USB2.0(Type B socket)
Multitouch control protocol support:Windows
Power input:DC in: DC 12V3A (50/60 Hz)
Power:≤ 25W (typ.)
Standby power:≤ 2W (typ.)
Wall hanging form:VESA,MIS-E,C
Work environment:0 °C ~ 40 °C, 90% RH
Storage environment:-20 °C ~ 60 °C, 90% RH
|
|
| Backlight technology | Led |
| Luminance | 250 cd/m2 |
| Contrast ratio | 3000:1 |
| Visual Angle | Horizontal: 178 / vertical: 178 |
| Response time | 25ms(GTG) |
| Display color | 262K(6bit) Colors |
| Display resolution | 1388*768 (16:9) |
| Frequency of refresh | 60Hz |
| Input resolution | 1388*768@ 60Hz |
| Junctor | VGA / DVI / HDMI |
|
|
| OSD control | Button |
| OSD language | English, Chinese |
|
|
| Glass | 3mm black screen screen tempered glass |
| Touch point number | / |
| Touch technology | / |
| The pen type | / |
| Waterproof performance | / |
| Calibration | / |
| Response time | / |
| Interlinkage | USB2.0(Type B socket) |
| Multitouch control protocol support | Windows |
| Operating system | Win 7/8,Android,Linux |
|
|
| External dimensions | 465 x 285.5 x 42.5 mm |
|
Open hole dimensions |
522x 313.5mm |
| Weight (approx) | 6 kg / 8 kg |
| Wall hanging form | VESA,MIS-E,C |
|
|
| Power input | DC in: DC 12V3A (50/60 Hz) |
| Power | ≤ 25W (typ.) |
| Standby power | ≤ 2W (typ.) |
| Built-in speakers | none |
|
|
| Work environment | 0 °C ~ 40 °C, 90% RH |
| Storage environment | -20 °C ~ 60 °C, 90% RH |
|
|
| Other | Bracket / power cord / VGA cord / USB cord / power adapter |
