Product Details:
|
| Size: | 32” | Screen Type: | Led |
|---|---|---|---|
| Visual Angle: | Horizontal: 178 / Vertical: 178 | Color Dispay: | 16.7M Colors |
| Brightness: | 250 Cd/m2 | Mounting Method: | VESA,MIS-E,C |
| Junctor: | VGA / DVI / HDMI | Power: | DC 12V3A |
| Warranty: | 12 Months | ||
| High Light: | DVI Industrial Touch Screen Monitors,Industrial Touch Screen Monitors IP65,Touch Screen Monitor Open Frame 60Hz |
||
PRODUCT DESCRIPTION

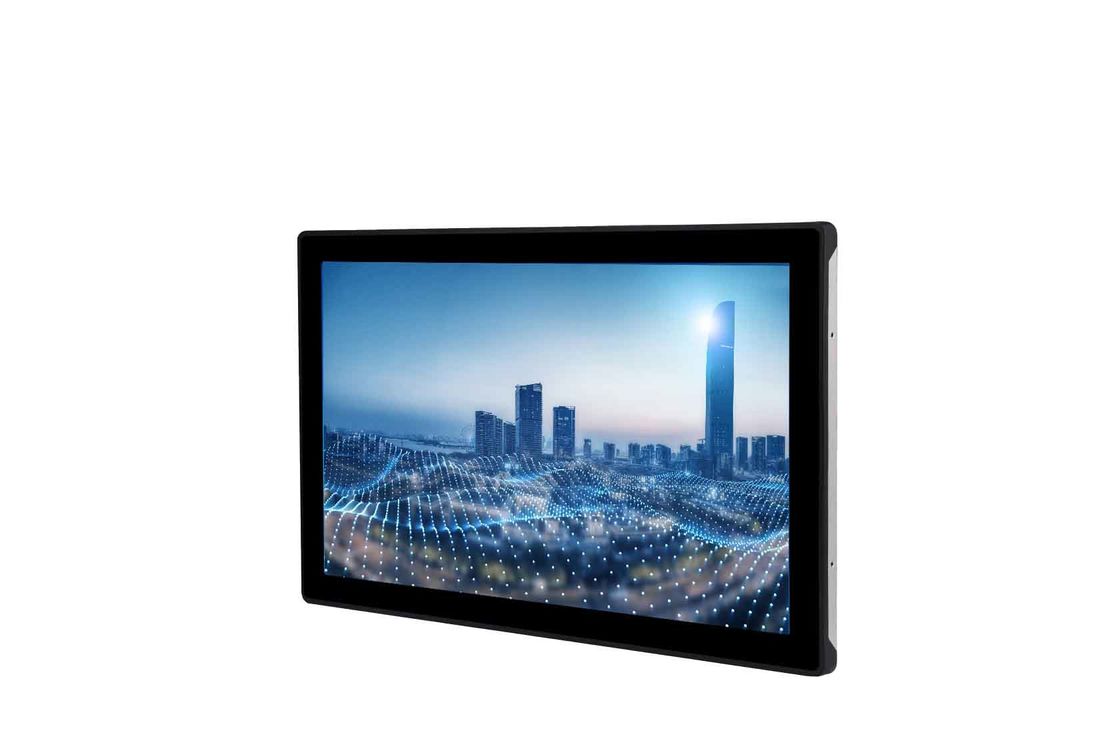

16 : 9 Open Frame Industrial Grade LCD Touch Screen Monitor
Industrial chassis monitor LCD displays are fully-integrated, commercially off-the-shelf units that combine high-performance technology, in industrial-grade LCD flat panels, with sleek and flush mount IP65 chassis front surface industrial design. Industrial monitor LCD displays provide reliability, durability, and expected longer product life.HD display color realistic, excellent workmanship and quality assurance, simple wireless space saving, ergonomic design is stable and reliable, intelligent touch operation of writing is smooth, touch software, widely used.
SPECIFICATION
|
|
| Backlight technology | Led |
| Luminance | 250 cd/m2 |
| Contrast ratio | 3000:1 |
| Visual Angle | Horizontal: 178 / Vertical: 178 |
| Response time | 25ms(GTG) |
| Display color | 16.7M Colors |
| Display resolution | 1920x1080 (16:9) |
| Frequency of refresh | 60Hz |
| Input resolution | 1920x1080 @ 60Hz |
| Junctor | VGA / DVI / HDMI |
|
|
| OSD control | button |
| OSD language | English, Chinese |
|
|
| Glass | 3mm black screen screen tempered glass |
| Touch point number | / |
| Touch technology | / |
| The pen type | / |
| Waterproof performance | / |
| Calibration | / |
| Response time | / |
| Interlinkage | / |
| Multitouch control protocol support | / |
| Operating system | Win 7/8,Android,Linux |
|
|
| Dimension | 780 x 475 x 54.5 mm |
| Embedded hole opening dimensions | 772 x 467 mm |
| Packing measurement | 820 x 570 x 150 mm |
| Weight (approx) | 8kg /10 kg |
| Wall hanging form | VESA,MIS-E,C |
|
|
| Power input | DC in: DC 12V3A (50/60 Hz) |
| Power | ≤ 25W (typ.) |
| Standby power | ≤ 2W (typ.) |
| Built-in speakers | / |
|
|
| Work environment | 0 °C ~ 40 °C, 90% RH |
| Storage environment | -20 °C ~ 60 °C, 90% RH |
|
|
| Other | Bracket / power cord / VGA cord / USB cord / power adapter |
FEATURES
32 Inch Open Frame Touchscreen with Metal Frame
1.16: 9, Metal Frame
2. Inputs: VGA / DVI / HDMI
3.Operating system: Win 7/8,Android,Linux
4. Power Input: 12V3A (50/60 Hz)
