Product Details:
|
| Backlight Technology: | Led | Contrast Ratio: | 3000:1 |
|---|---|---|---|
| Frequency Of Refresh: | 60Hz | Power Input: | DC 12V3A (50/60 Hz) |
| Display Resolution: | 16:9 | OSD Language: | English, Chinese |
| Wall Hanging Form: | VESA,MIS-E,C | Touch Form: | Without Touch |
| High Light: | 21.5'' Embedded Touch Monitor,Embedded Touch Monitor RoHS,Industrial Chassis LCD Monitor |
||
PRODUCT DESCRIPTION

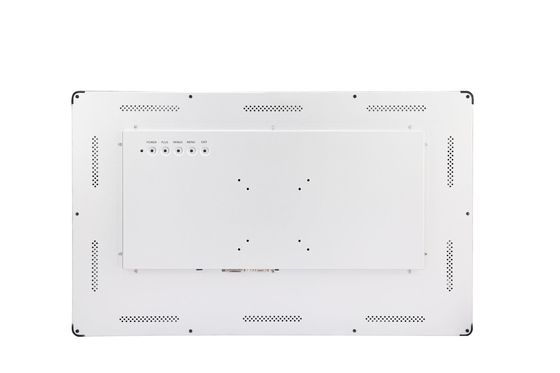

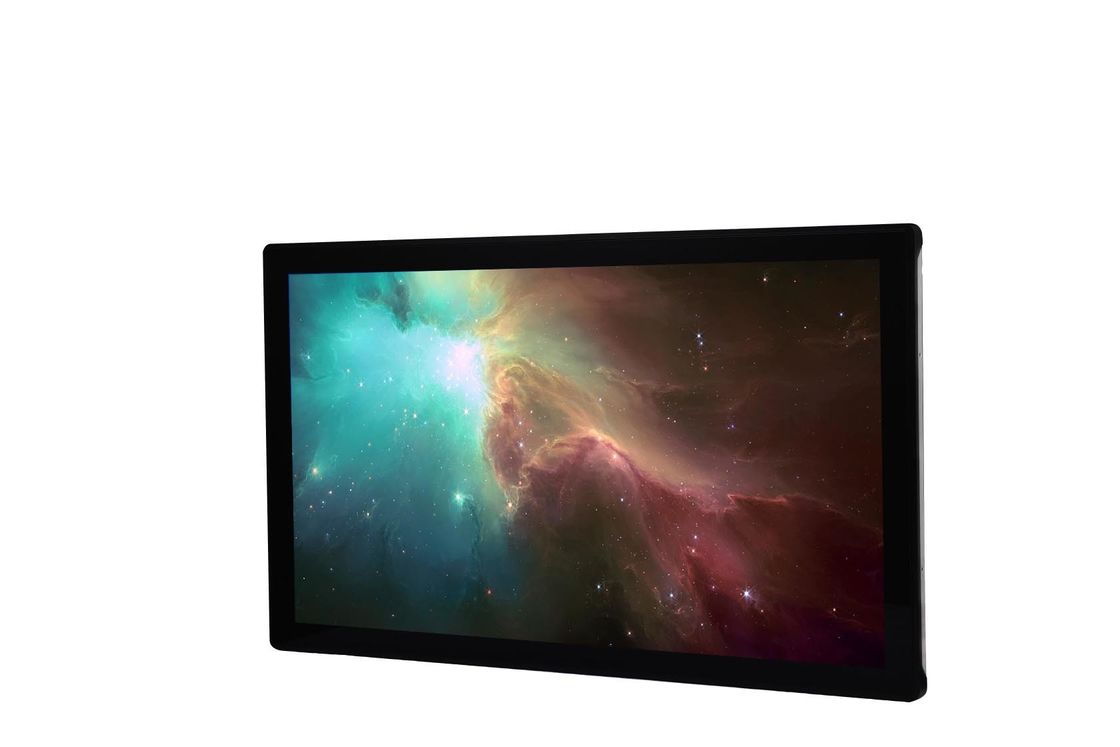

21.5'' industrial chassis lcd monitor with touch optional for industrial use
ITD Industrial chassis LCD monitors come with rugged all steel frames and highly-durable glass front surface provide the durability needed for demanding industrial harsh environments. Industrial touch screen chassis monitor displays are designed for digital signage, kiosks, POI, OEM machinery, transportation depots, theme and amusement parks, airports and railroad terminals.HD display color realistic, excellent workmanship and quality assurance, simple wireless space saving, ergonomic design is stable and reliable, intelligent touch operation of writing is smooth, touch software, widely used.
SPECIFICATION
|
|
| Backlight technology | Led |
| Luminance | 250 cd/m2 |
| Contrast ratio | 3000:1 |
| Visual Angle | Horizontal: 178 / Vertical: 178 |
| Response time | 25ms(GTG) |
| Display color | 16.7M Colors |
| Display resolution | 1920x1080 (16:9) |
| Frequency of refresh | 60Hz |
| Input resolution | 1920x1080 @ 60Hz |
| Junctor | VGA / DVI / HDMI |
|
|
| OSD control | button |
| OSD language | English, Chinese |
|
|
| Glass | 3mm black screen screen tempered glass |
| Touch point number | 10 |
| Touch technology | Projective capacitor (G + G) |
| The pen type | Fingers, hands with gloves, and a conductive stylus |
| Waterproof performance | Touch surface is not affected by water droplets or water vapor |
| Calibration | No calibration tool |
| Response time | 7ms-12ms |
| Interlinkage | USB2.0(Type B socket) |
| Multitouch control protocol support | Windows |
| Operating system | Win 7/8,Android,Linux |
|
|
| Dimension | 522.3 x 323.7 x 42.7 mm |
| Packing measurement | 685 x 155 x 475 mm |
| Weight (approx) | 6 kg / 8 kg |
| Wall hanging form | VESA,MIS-E,C |
|
|
| Power input | DC in: DC 12V3A (50/60 Hz) |
| Power | ≤ 25W (typ.) |
| Standby power | ≤ 2W (typ.) |
| Built-in speakers | N |
|
|
| Work environment | 0 °C ~ 50 °C, 90% RH |
| Storage environment | -20 °C ~ 60 °C, 90% RH |
|
|
| Other | Bracket / power cord / VGA cord / USB cord / power adapter |
Company introduction
Wuhan Longyu Intelligent Technology Co., Ltd has a strong R & D, production, sales and management team. Relying on independently developed embedded computer software system and hardware platform technology, we have carefully developed a series of products, the main products include: man-machine interface touch screen, industrial tablet computer all-in-one, ARM industrial motherboard, industrial display, etc. We strive to promote the upgrading of China's manufacturing industry, the research and development of products are widely used in intelligent transportation, automation equipment, terminal self-help equipment, industrial control, electric power, military industry, finance, network security, Marine manufacturing, medical instruments, numerical control, instrumentation, scientific research and other industries, with many well-known enterprises at home and abroad to maintain long-term stable cooperation.
