Product Details:
|
| Size: | 10.1” | Backlight Technology: | Led |
|---|---|---|---|
| Touch Point Number: | 10 | Power Input: | DC 12V3A (50/60 Hz) |
| Display Resolution: | 1920x1080 | Interlinkage: | USB |
| Touch Form: | Capacitive | Wall Hanging Form: | VESA,MIS-E,C |
| High Light: | VGA Embedded Touch Monitor,Embedded Touch Monitor Touchscreen,Thin Touch Screen Monitor Capacitive |
||
PRODUCT DESCRIPTION

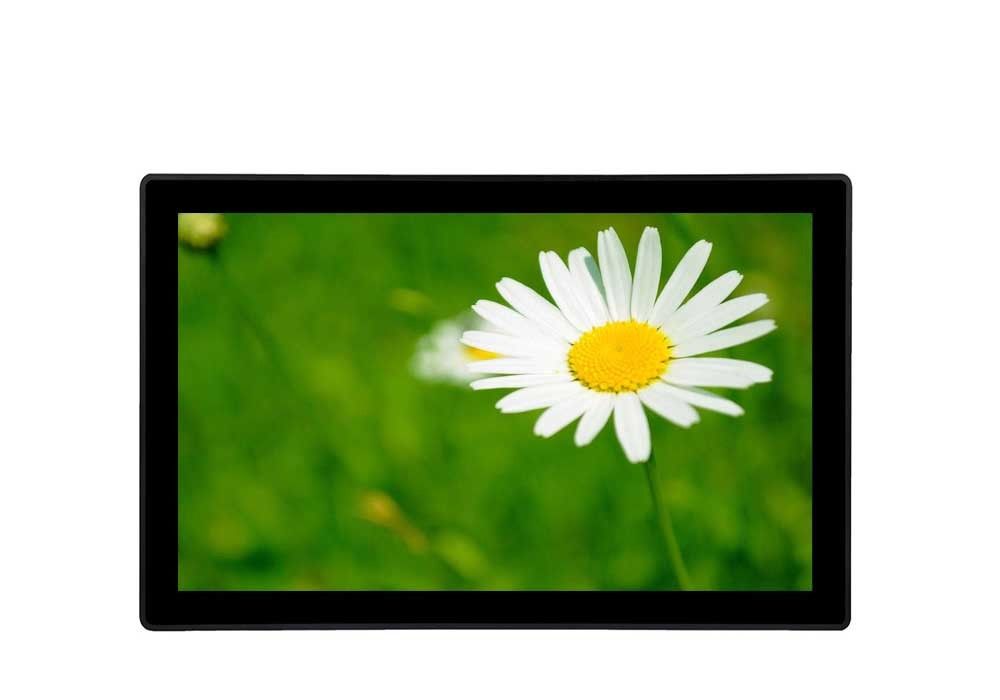

10.1 Inch Super Thin Touch Screen Monitor LCD Panel Industrial Display Open Frame Monitor Touchscreen
ITD Industrial chassis LCD monitors come with rugged all steel frames and highly-durable glass front surface provide the durability needed for demanding industrial harsh environments. Industrial touch screen chassis monitor displays are designed for digital signage, kiosks, POI, OEM machinery, transportation depots, theme and amusement parks, airports and railroad terminals.
SPECIFICATION
|
|
| Backlight technology | Led |
| Luminance | 300 cd/m2 |
| Visual Angle | Horizontal: 160 / vertical: 140 |
| Response time | 25ms(GTG) |
| Display color | 262K(6bit) Colors |
| Display resolution | 1280*800 (4:3) |
| Frequency of refresh | 60Hz |
| Input resolution | 1280*800@ 60Hz |
| Junctor | VGA / HDMI /USB |
|
|
| OSD control | Button |
| OSD language | English, Chinese |
|
|
| Glass | 3mm black screen screen tempered glass |
| Touch point number | 10 |
| Touch technology | Projective capacitor (G + G) |
| The pen type | Fingers, hands with gloves, and a conductive stylus |
| Waterproof performance | Touch surface is not affected by water droplets |
| Calibration |
No calibration tool |
| Response time | 7ms-12ms |
| Interlinkage | USB2.0 |
| Multitouch control protocol support | Windows |
| Operating system | Win 7/8,Android,Linux |
|
|
| Dimension | 268.3*174*45.5mm |
| Weight (approx) | 3kg / 5 kg |
| Wall hanging form | VESA,MIS-E,C |
|
|
| Power input | DC in: DC 12V-24V |
| Power | ≤ 25W (typ.) |
| Standby power | ≤ 2W (typ.) |
| Built-in speakers | / |
|
|
| Work environment | 0 °C ~ 40 °C, 90% RH |
| Storage environment | -20 °C ~ 60 °C, 90% RH |
|
|
| Other | Bracket / power cord / VGA cord / USB cord / power adapter |
FEATURES
DC 12V power input (optional 12-24V wide voltage), using phonix fastening power socket, more convenient for industrial field applications. Equipped with a world-renowned brand "Huntkey" power adapter;
Standard VGA display interface (VGA / HDMI and other interfaces are optional);
Operating system: compatible with mainstream operating systems such as Win 7/8,Android,Linux;
Support multiple installation methods, embedded/wall-mounted/desktop.
10.1 Inch Open Frame Touchscreen with Metal Frame
1.4:3, Metal Frame
2. Inputs: VGA / DVI / HDMI /USB
3.Operating system: Win 7/8,Android,Linux
4. Power Input: 12V-24V
