Product Details:
|
| Product Size: | 8.4 Inch | Resolution Ratio: | 800*600 |
|---|---|---|---|
| Display Brightness: | 450cd/m2 | Touch Screen: | Four Wire Resistive |
| Operational Temperature: | -30℃-70℃ | Input Voltage: | 15V-36V |
| Product Size: | W252mm×H190mm×D48.6mm | Opening Size: | W274mm×H203mm |
| High Light: | 8.4 Inch Industrial HMI Panels,Industrial HMI Panels RS485,RS232 LCD Panel Interface |
||
Product Description

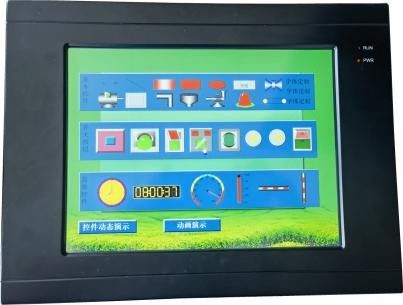

Industrial HMI Panel Touch Screen Monitor 8.4 inch Human Machine Interface LCD Panel RS232 RS485
Our Advantages:
1. Independent R&T team.
2. 7days no reasons to refund.
3. 24hours and 7days in service.
4. Offering DEMO per customer requirement to help and solve the problem.
5. Supporting payment through online credit card, by USD, RMB, Euro, and the other currency.
Specifications:
Product Performance:
| ·LCD screen: | : | 8.4-inch TFT LCD, LED backlight, color 65536 bits |
| ·Resolution | : | 800*600 |
| Display brightness | : | 600cd/m2 |
| ·C P U | : | Cortex-A7 four core 1.2G |
| ·Memory | : | 1G DDRIII RAM |
| ·Touch screen | : | Four wire resistive, click more than 1 million times |
| ·Storage device | : | 8G eMMC electronic disk |
| ·SD card extension | : | Optional, Max scalability 16G |

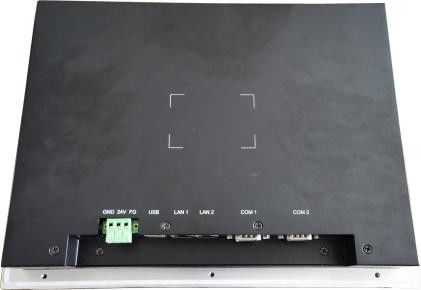

| ·Interface | : | 1*RS232,3*RS485(1*CAN for Selectable ),2*LAN |
| ·Extension interface | : | 2*USB 2.0 |
| ·Real time clock | : | Available |
| ·Buzzer | : | Available |
| ·Operational temperature | : | -30℃ to +70℃ |
| ·Degree of protection | : | IP 65( operating surface) |
| ·Input voltage | : | 15V-36V Wide range input voltage |
| ·Anti interference | : | Power frequency magnetic field interference level 5,Magnetic field strength 100A / M |
| ·Case Material | : | Panel aviation aluminum material, surface treatment: acrylic polyurethane. Treatment method: Primer twice and topcoat three times, with a thickness of about 0.1 mm. |
| ·Product Size | : | W252mm×H190mm×D48.6mm |
| ·Opening size | : | W238mm×H176mm |
