Product Details:
|
| Size: | 15.6” | Backlight Technology: | Led |
|---|---|---|---|
| Frequency Of Refresh: | 60Hz | Power Input: | DC 12V3A |
| Display Resolution: | 1920x1080 | Touch Point Number: | No Touch |
| High Light: | GTG Industrial Touch Screen Monitors,Industrial Touch Screen Monitors 12V3A,Wall Mount Touch Screen Monitor OSD |
||
PRODUCT DESCRIPTION

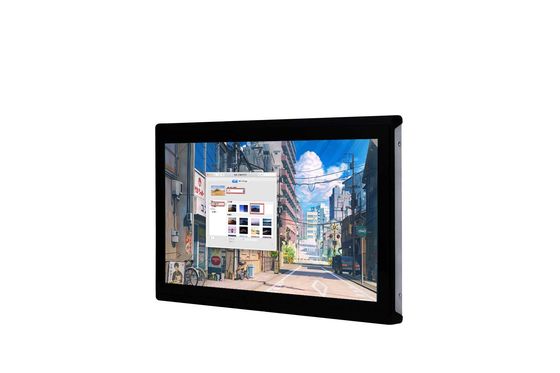

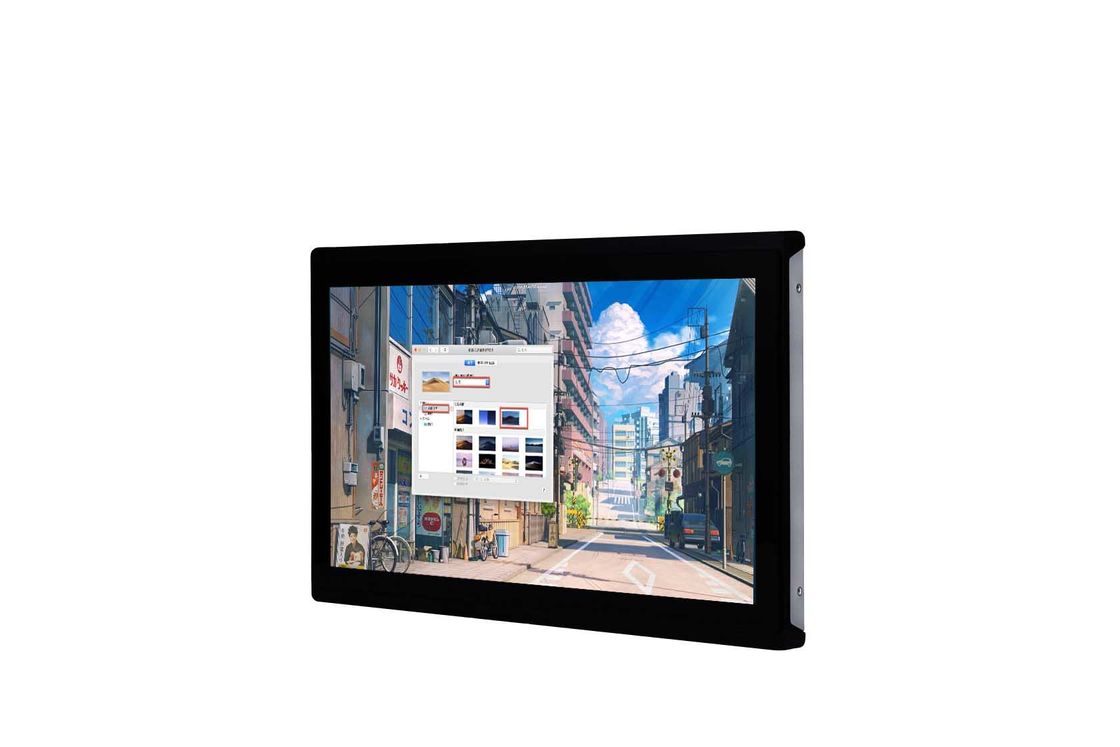

Industrial Metal Open Frame Embedded Wall Mount LCD Display General Open Frame Touch Screen Monitor 15.6" 12V3A
LY-B156 Monitor HD display color realistic, excellent workmanship and quality assurance, simple wireless space saving, ergonomic design is stable and reliable, intelligent touch operation of writing is smooth, touch software, widely used.
SPECIFICATION
Backlight technology:Led
Luminance:250 cd/m2
Contrast ratio:Horizontal: 178 / Vertical: 178
Response time:25ms(GTG)
Display color:16.7M Colors
Display resolution:1920x1080 (16:9)
Frequency of refresh:60Hz
Input resolution:1920x1080 @ 60Hz
Junctor:VGA / HDMI
OSD control:button
OSD language:English, Chinese
Interlinkage:USB2.0(Type B socket)
Multitouch control protocol support:Windows
Power input:DC in: DC 12V3A (50/60 Hz)
Power:≤ 25W (typ.)
Standby power:≤ 2W (typ.)
Wall hanging form:VESA,MIS-E,C
Work environment:0 °C ~ 40 °C, 90% RH
Storage environment:-20 °C ~ 60 °C, 90% RH
|
|
| Backlight technology | Led |
| Luminance | 250 cd/m2 |
| Contrast ratio | 3000:1 |
| Visual Angle | Horizontal: 178 / vertical: 178 |
| Response time | 25ms(GTG) |
| Display color | 262K(6bit) Colors |
| Display resolution | 1920x1080 (16:9) |
| Frequency of refresh | 60Hz |
| Input resolution | 1920x1080 @ 60Hz |
| Junctor | VGA / HDMI |
|
|
| OSD control | Button |
| OSD language | English, Chinese |
|
|
| Glass | 3mm black screen screen tempered glass |
| Touch point number | / |
| Touch technology | / |
| The pen type | / |
| Waterproof performance | / |
| Calibration | / |
| Response time | / |
| Interlinkage | USB2.0(Type B socket) |
| Multitouch control protocol support | Windows |
| Operating system | Win 7/8,Android,Linux |
|
|
| Dimension | 383 x 249 x 48 mm |
| Packing measurement | 685 x 155 x 475 mm |
| Weight (approx) | 6 kg / 8 kg |
| Wall hanging form | VESA,MIS-E,C |
|
|
| Power input | DC in: DC 12V3A (50/60 Hz) |
| Power | ≤ 25W (typ.) |
| Standby power | ≤ 2W (typ.) |
| Built-in speakers | none |
|
|
| Work environment | 0 °C ~ 40 °C, 90% RH |
| Storage environment | -20 °C ~ 60 °C, 90% RH |
|
|
| Other | Bracket / power cord / VGA cord / USB cord / power adapter |
APPLICATIONS
•Security
•CCTV
•Automation
•Kiosks
