Product Details:
|
| Product Size: | 5 Inch | Resolution Ratio: | 800*480 |
|---|---|---|---|
| Display Brightness: | 400cd/m2 | Touch Screen: | Four Wire Resistive |
| Interface: | 2*RS232、1*RS485、1*LAN | Operational Temperature: | -10℃ To +65℃ |
| Extension Interface: | 2*USB 2.0 | Real Time Clock: | Available |
| High Light: | 4 Wire Resistive Touch Panel,Resistive Touch Panel 5 Inch,Touch Screen Display Panel DC12V |
||
Product Description

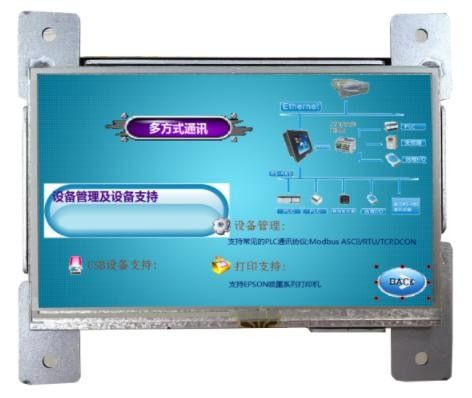

Resistive 4 Wire 5” Touch Screen Display Panel DC12V - DC 30V
HMIAT3050TSM is a high-performance embedded integrated human-computer interface based on the industrial-grade Cortex A7 (dual-core main frequency 1.2 Ghz) CPU. The product is designed with a 5-inch LED LCD display (resolution 800*480) and a four-wire resistive touch screen. Meanwhile, Lonkon industrial configuration software is pre-installed.
Specifications:
● LCD screen5-inch TFT LCD, LED backlight, color 65536 bits
● Resolution:800*480
● Display brightness:400cd/m2
● C P U:Cortex A7,dual core 1.2 Ghz
● Memory:128M SRAM
● Touch screen:Four wire resistive, click more than 1 million times
● Storage device:128M NAND FLASH
●Interface:1*RS232,2*RS485,1*LAN
●Product Size:W122mm×H107mm×D24.6mm
●Opening size:W109mm×H66mm
Product Performance:
| ·LCD screen: | : | 5-inch TFT LCD, LED backlight, color 65536 bits |
| ·Resolution | : | 800*480 |
| Display brightness | : | 400cd/m2 |
| ·C P U | : | Cortex A7,dual core 1.2 Ghz |
| ·Memory | : | 128M DDR2 |
| ·Touch screen | : | Four wire resistive, click more than 1 million times |
| ·Storage device | : | 128M NAND FLASH |
| ·SD card extension | : | Optional, Max scalability 64G |

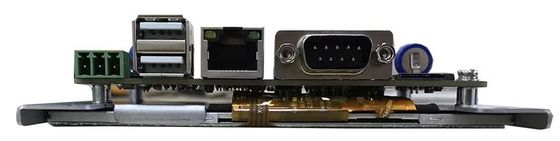

| ·Interface | : | 2*RS232,1*RS485 ,1*LAN |
| ·Extension interface | : | 2*USB 2.0 |
| ·Real time clock | : | Available |
| ·Buzzer | : | Available |
| ·Operational temperature | : | -20℃ to +65℃ |
| ·Degree of protection | : | IP 65( operating surface) |
| ·Input voltage | : | 12V to 30V Wide range input voltage |
| ·Anti interference | : | Power frequency magnetic field interference level 5,Magnetic field strength 100A / M |
| ·Product Size | : | W122mm×H107mm×D24.6mm |
| ·Opening size | : | W109mm×H66mm |
