Product Details:
|
| Product Size: | 10.1 Inch | Resolution Ratio: | 1024*600 |
|---|---|---|---|
| LCD Screen: | 7-inch TFT LCD, LED Backlight, Color 65536 Bits | Display Brightness: | 450cd/m2 |
| Touch Screen: | Four Wire Resistive | Interface: | 3*RS232/RS485 Switch, 1*LAN |
| Operational Temperature: | -20℃ To +65℃ | Product Size: | W269mm×H174mm×D43.5mm |
| High Light: | HMI 10.1 Inch Touch Panel,10.1 Inch Touch Panel Resistive,All in One Control Panel IP65 |
||
Product Description

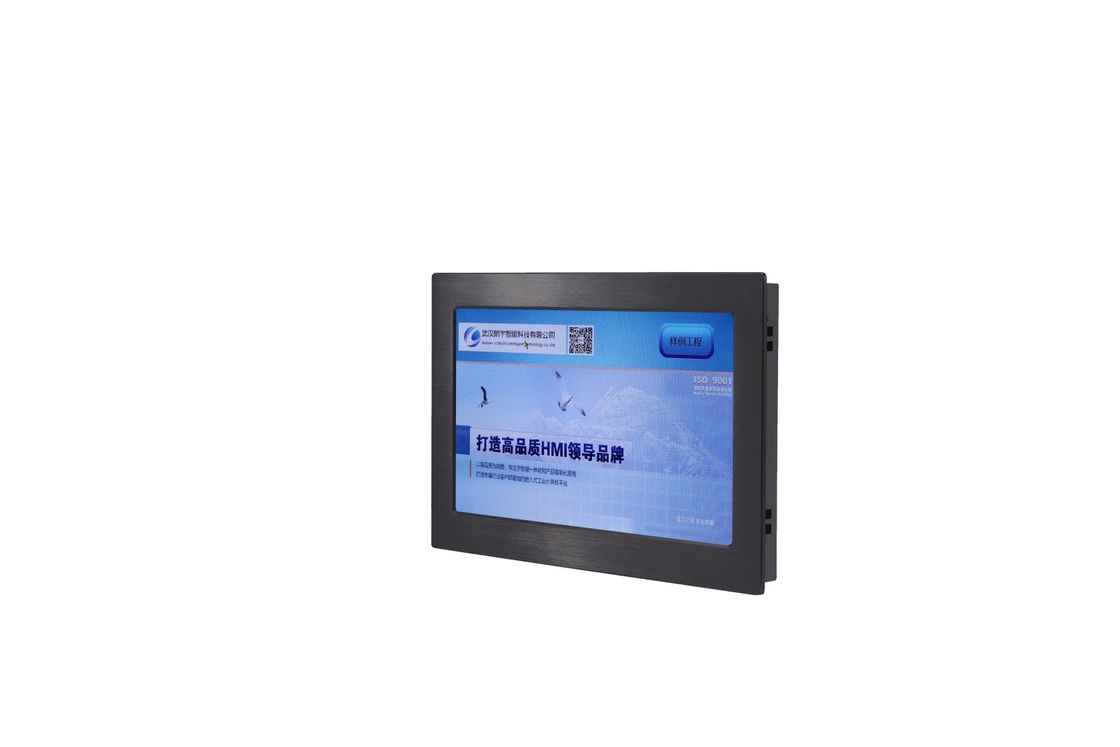

10.1" Touch Screen Panel PLC HMI All in One Industrial Control Display Panels
HMIAT3100H is a high-performance embedded integrated man-machine interface with industrial grade cortex A7 (dual core dominant frequency 1.2 GHz) CPU as the core. The product is designed with 10.1-inch LED LCD (resolution 1024*600) and four wire resistive touch screen. CrossWin industrial configuration software is preinstalled at the same time.
Specifications:
● LCD screen:10.1-inch TFT LCD, LED backlight, color 65536 bits
● Resolution:1024*600
● Display brightness:500cd/m2
● C P U:Cortex A7,dual core 1.2 Ghz
● Memory:128M DDR2
● Touch screen:Four wire resistive, click more than 1 million times
● Storage device:128M NAND FLASH
● SD card extension:Optional, Max scalability 64G
Product Performance:
| ·LCD screen: | : | 10.1-inch TFT LCD, LED backlight, color 65536 bits |
| ·Resolution | : | 1024/600 |
| Display brightness | : | 450cd/m2 |
| ·C P U | : | Cortex A7,dual core 1.2 Ghz |
| ·Memory | : | 128M DDR2 |
| ·Touch screen | : | Four wire resistive, click more than 1 million times |
| ·Storage device | : | 128M NAND FLASH |
| ·SD card extension | : | Optional, Max scalability 64G |

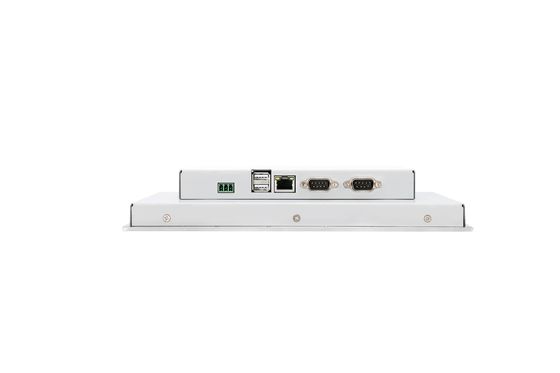

| ·Interface | : | 3*RS232/RS485 Switch,1*LAN |
| ·Extension interface | : | 2*USB 2.0(HOST) |
| ·WIFI interface | : | None |
| ·GPIO interface | : | 8 GPIO interface |
| ·Communicationisolation | : | Can expand 1 way 2.4G wifi (depends on request) |
| ·Real time clock | : | Available |
| ·Buzzer | : | Available |
| ·Operational temperature | : | -20℃ to +65℃ |
| ·Degree of protection | : | IP 65( operating surface) |
| ·Input voltage | : | 12V to 30V Wide range input voltage |
| ·Anti interference | : | Power frequency magnetic field interference level 5,Magnetic field strength 100A / M |
| ·Product Size | : | W206mm×H142mm×D34mm |
| ·Opening size | : | W192mm×H134 mm |
