Product Details:
|
| CPU: | Intel®Celeron™ J900 | Size: | 17 Inch |
|---|---|---|---|
| Respond Time: | < 5ms | Resolution Ratio: | 1280*1024 |
| Backlight Life: | 30000hrs | MaximPower Consumption: | 33W |
| Pixel Pitch: | 0.294×0.294 | Controller: | USB Port |
| High Light: | RS485 Industrial PC All In One,RS232 Industrial PC All In One,Wall Mount Panel FCC |
||
Product Description

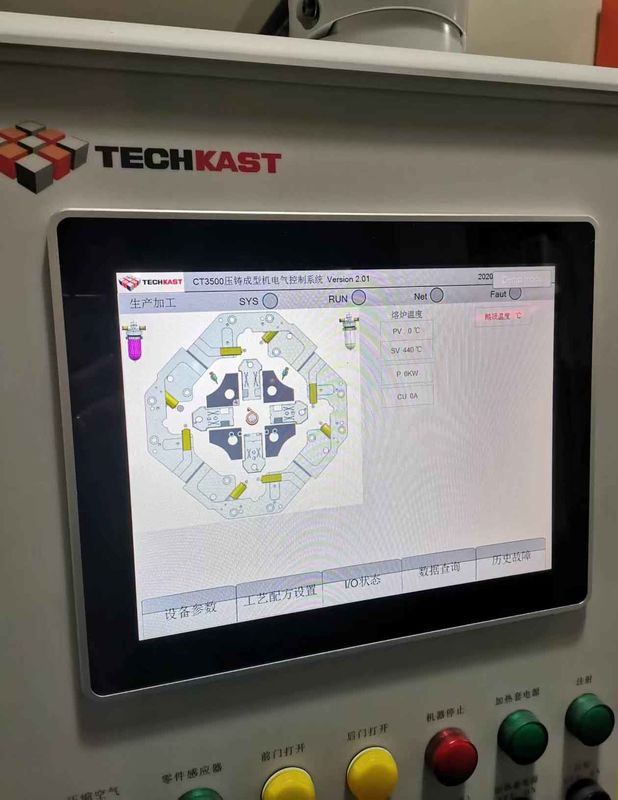

RS485 RS232 IP65 Waterproof All in One Embedded Wall Mount Panel Industrial PC
Specifications:
● Intel® Celeron® J1900 main frequency 2.0Ghz quad-core four threads
● 4GB DDR3L high-speed memory, up to 16G support
● Dual Realtek 10M/100M/1000M adaptive Gigabit network chips
● 6 serial ports (up to 2 x RS485), 1*USB3.0,3*USB2.0, 1*HDMI, 1*VGA, Rich interface
● WiFi, Bluetooth, 4G wireless configuration optional
● Panel mounting hole size (recommended) 376mm x313mm (W x H)
● Peripheral size 395mm x328mm x 55mm (W x H x D)
● Installation method: Support 75mm*75mm VESA installation and front embedded installation
● 10 point capacitive touch screen
Product Performance:
|
System Parameter |
CPU | Intel®Celeron™ J900 |
| Frequency | 2.0GHz | |
| Running memory | Support DDR3L-1333 MHz, 1 * SO-DIMM Slot, Up to 8GB | |
| EMMC | 1 * mSATA(3.0) | |
|
I/O |
Network | 2*Realtek® 1Gbps PCIe Ethernet Controller, RJ-45 LAN Port |
| Mic | Realtek® HDA Codec, with MIC/Line-out | |
| USB | 1x USB3.0/3 x USB2.0 | |
| Serial port | 4 x RS-232； 2 x RS-232 / RS-485 | |
| expansion slot | 1 * SATA3.0 7+15P Connector/2*Mini-PCIe (1*mSATA, 1*Wifi+4G) | |
| I/O port | 1 x VGA / 1 x HDMI/2 x GLAN / 4 x USB / Line-out / Mic-in/DC-IN | |
| physical characteristics | Dimension (W x H x D) |
395mm x328mm x 55mm |
| hole size (W x H) |
376mm x313mm |
|
| Net Weight | 3.56kg | |
| Operating System | Operating System | Windows10, Linux, |
| Power | Input voltage | 12VDC (12-24VDC),Supports reverse connection protection |
| MaximPower Consumption | 33W | |
|
Display |
screen | 17" Full HD TFT |
| Resolving power | 1024*1080 | |
| Color Dispay | 16.7MB | |
| Backlight | LED | |
| Backlight life | 30000hrs | |
| Pixel pitch |
0.294×0.294 |
|
| Luminance | 250 cd/cm² | |
| Contrast | 1000 : 1 | |
| View angle | (L) 85 / (R) 85 / (T) 85 / (B) 85 | |
|
Environmental parameter |
Working temperature | 0 ~ 45° C (32~113°F) |
| 0 ~ 50° C (32~113°F) ；-20 ~ 60° C (-4 ~ 140°F) (RT) | ||
| Operating Temperature | -20 ~ 60° C (-4 ~ 140°F) | |
| Relative humidity | 10~95% RH@40°C,non-condensing | |
| Vibration | SSD applied: 1.5 Grms, 5 ~ 500 Hz, 1 hr/axis | |
| EMC | CE/FCC Class B | |
| waterproof | IP65 |
