Product Details:
|
| Luminance: | 350cd/ M² | CPU: | Intel®Celeron™ J900 |
|---|---|---|---|
| Operating System: | Windows10, Linux, | Size: | 15 Inch |
| Contrast: | 700:1 | Respond Time: | < 5ms |
| Resolution Ratio: | 1024×768 | Backlight Life: | 30000hrs |
| High Light: | ODM All In One PC Touchscreen,All In One PC Touchscreen FCC,Desktop All in One PC J1900 |
||
Product Description

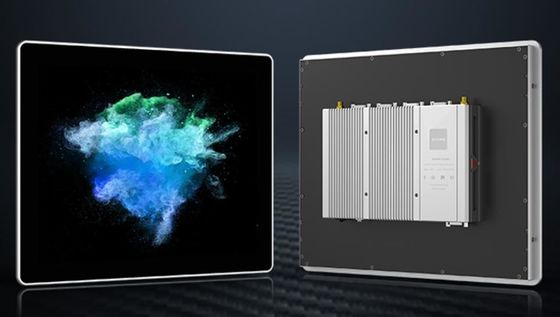

OEM / ODM 15 Inch Core J1900 Computer Touchscreen for Business Gaming Desktop All in One PC
Specifications:
CPU:Intel®Celeron™ J900
Running memory: Support DDR3L-1333 MHz, 1 * SO-DIMM Slot, Up to 8GB
EMMC: 1 * mSATA(3.0)
Operating System: Windows10, Linux
Network:2*Realtek® 1Gbps PCIe Ethernet Controller, RJ-45 LAN Port
USB:1x USB3.0/3 x USB2.0
Expansion slot:1 * SATA3.0 7+15P Connector/2*Mini-PCIe (1*mSATA, 1*Wifi+4G)
I/O port:1 x VGA / 1 x HDMI/2 x GLAN / 4 x USB / Line-out / Mic-in/DC-IN
Serial port:4 x RS-232； 2 x RS-232 / RS-485
Dimension (W x H x D):361mm x285mm x 52mm
hole size (W x H):346mm x 272mm
Net Weight:3.56kg
Input voltage:12VDC (12-24VDC),Supports reverse connection protection
MaximPower Consumption:25W
Product Performance:
|
System Parameter |
CPU | Intel®Celeron™ J900 |
| Frequency | 2.0GHz | |
| Running memory | Support DDR3L-1333 MHz, 1 * SO-DIMM Slot, Up to 8GB | |
| EMMC | 1 * mSATA(3.0) | |
|
I/O |
Network | 2*Realtek® 1Gbps PCIe Ethernet Controller, RJ-45 LAN Port |
| Mic | Realtek® HDA Codec, with MIC/Line-out | |
| USB | 1x USB3.0/3 x USB2.0 | |
| Serial port | 4 x RS-232； 2 x RS-232 / RS-485 | |
| expansion slot | 1 * SATA3.0 7+15P Connector/2*Mini-PCIe (1*mSATA, 1*Wifi+4G) | |
| I/O port | 1 x VGA / 1 x HDMI/2 x GLAN / 4 x USB / Line-out / Mic-in/DC-IN | |
| physical characteristics | Dimension (W x H x D) |
361mm x285mm x 52mm |
| hole size (W x H) |
346mm x 272mm |
|
| Net Weight | 3.56kg | |
| Operating System | Operating System | Windows10, Linux, |
| Power | Input voltage | 12VDC (12-24VDC),Supports reverse connection protection |
| MaximPower Consumption | 25W | |
|
Display |
screen | 15" Full HD TFT |
| Resolving power | 1024*768 | |
| Color Dispay | 16.7MB | |
| Backlight | LED | |
| Backlight life | 50000hrs | |
| Pixel pitch |
0.297×0.297 |
|
| Luminance | 350 cd/cm² | |
| Contrast | 700 : 1 | |
| View angle | (L) 80/ (R) 80 / (T) 80 / (B) 80 | |
|
Environmental parameter |
Working temperature | 0 ~ 45° C (32~113°F) |
| 0 ~ 50° C (32~113°F) ；-20 ~ 60° C (-4 ~ 140°F) (RT) | ||
| Operating Temperature | -20 ~ 60° C (-4 ~ 140°F) | |
| Relative humidity | 10~95% RH@40°C,non-condensing | |
| Vibration | SSD applied: 1.5 Grms, 5 ~ 500 Hz, 1 hr/axis | |
| EMC | CE/FCC Class B | |
| waterproof | IP65 |
