Product Details:
|
| Luminance: | 350cd/ M² | CPU: | Intel®Celeron™ J900 |
|---|---|---|---|
| Operating System: | Windows7, Windows10, Linux, | Working Temperature: | -0℃ ~ 45℃ |
| Storage Temperature: | -20℃ ~ 60℃ | OEM/ODM: | YES |
| Controller: | USB Port | Contrast: | 800:1 |
| High Light: | ODM LCD Panel Touch Screen,LCD Panel Touch Screen 10.4 Inch,Monitor All in One PC 12VDC |
||
Product Description

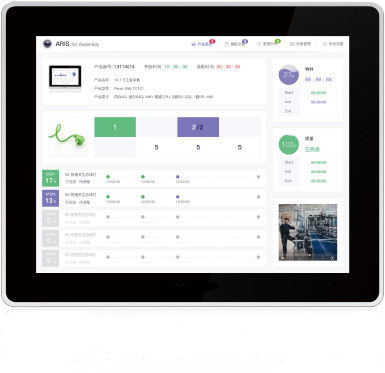

All in One PC 10.4 Inch Touch Screen Advertising LCD Panel Touchscreen Industrial Monitor
Specifications:
CPU:Intel®Celeron™ J900
Running memory: Support DDR3L-1333 MHz, 1 * SO-DIMM Slot, Up to 8GB
EMMC: 1 * mSATA(3.0)
Operating System: Windows10, Linux
Network:2*Realtek® 1Gbps PCIe Ethernet Controller, RJ-45 LAN Port
Luminance:350 cd/ m²(Select a 450cd / m² s)
USB:1x USB3.0/3 x USB2.0
Expansion slot:1 * SATA3.0 7+15P Connector/2*Mini-PCIe (1*mSATA, 1*Wifi+4G)
I/O port:1 x VGA / 1 x HDMI/2 x GLAN / 4 x USB / Line-out / Mic-in/DC-IN
Serial port:4 x RS-232； 2 x RS-232 / RS-485
Dimension (W x H x D):266mm x213mm x 51mm
hole size (W x H):248mm x 195mm
Net Weight:2.587kg
Product Performance:
|
System Parameter |
CPU | Intel®Celeron™ J900 |
| Frequency | 2.0GHz | |
| Running memory | Support DDR3L-1333 MHz, 1 * SO-DIMM Slot, Up to 8GB | |
| EMMC | 1 * mSATA(3.0) | |
|
I/O |
Network | 2*Realtek® 1Gbps PCIe Ethernet Controller, RJ-45 LAN Port |
| Mic | Realtek® HDA Codec, with MIC/Line-out | |
| USB | 1x USB3.0/3 x USB2.0 | |
| Serial port | 4 x RS-232； 2 x RS-232 / RS-485 | |
| expansion slot | 1 * SATA3.0 7+15P Connector/2*Mini-PCIe (1*mSATA, 1*Wifi+4G) | |
| I/O port | 1 x VGA / 1 x HDMI/2 x GLAN / 4 x USB / Line-out / Mic-in/DC-IN | |
| physical characteristics | Dimension (W x H x D) |
266mm x213mm x 51mm |
| hole size (W x H) |
248mm x 195mm |
|
| Net Weight | 2.58kg | |
| Operating System | Operating System | Windows7, Windows10, Linux, |
| Power | Input voltage | 12VDC (12-24VDC) |
| MaximPower Consumption | 22W | |
|
Display |
screen | 10.4" Full HD TFT |
| Resolving power | 1024*768 | |
| Color Dispay | 16.7MB | |
| Backlight | LED | |
| Backlight life | 30000hrs | |
| Pixel pitch |
0.24×0.24 |
|
| Luminance | 350 cd/cm² | |
| Contrast | 800 : 1 | |
| View angle | (L) 80/ (R) 80 / (T) 80 / (B) 80 | |
|
Environmental parameter |
Working temperature | 0 ~ 45° C (32~113°F) |
| 0 ~ 50° C (32~113°F) ；-20 ~ 60° C (-4 ~ 140°F) (RT) | ||
| Operating Temperature | -20 ~ 60° C (-4 ~ 140°F) | |
| Relative humidity | 10~95% RH@40°C,non-condensing | |
| Vibration | SSD applied: 1.5 Grms, 5 ~ 500 Hz, 1 hr/axis | |
| EMC | CE/FCC Class B | |
| waterproof | IP65 |
