Product Details:
|
| Luminance: | 350cd/ M² | CPU: | Intel®Celeron™ J6413 |
|---|---|---|---|
| Operating System: | Windows7, Windows10, Linux, | IP Grade: | Industrial Grade IP65 Dustproof And Water Proof |
| Working Temperature: | -0℃ ~ 45℃ | Storage Temperature: | -20℃ ~ 60℃ |
| Size: | 10.1 Inch | Controller: | USB Port |
| High Light: | POS Touchscreen All in One,Touchscreen All in One IP65,Capacitive Touch PC 10.1 Inch |
||
Product Description

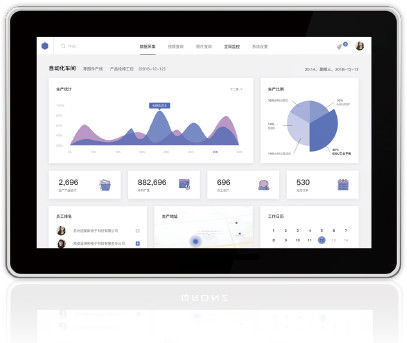

10.1 Inch Capacitive Touchscreen All in One PC for POS
Specifications:
CPU:Intel®Celeron™ J6413
Running memory:Support DDR4-2133MT/s, Up to 16GB
EMMC: 1 x 3.0" SATA + 1*M.2 2280 M-key
Operating System: Windows10, Linux
Network:2 x Intel i211 1000Mbps RJ-45
Luminance:350 cd/ m²
USB:4 x USB3.0/4 x USB2.0
Expansion slot:1*M.2 2242/50 B-Key support 4G/5G;WIFI
I/O port:DVI-I / 1 x HDMI/2 x GLAN / 4 x USB / Line-out / Mic-in/DC-IN
Serial port:4 x RS-232； 2 x RS-232 / RS-485
Dimension (W x H x D):257mm x176mm x 45mm
hole size (W x H):250mm x 162mm
Net Weight:1.76kg
Product Performance:
|
System parameter |
CPU | Intel®Celeron™ J6413 |
| frequency | 1.8~3.0GHz | |
| Running memory | Support DDR4-2133MT/s, Up to 16GB | |
| EMMC | 1 x 3.0" SATA + 1*M.2 2280 M-key | |
|
I/O |
network | 2 x Intel i211 1000Mbps RJ-45 |
| Mic | Realtek ACL662 | |
| USB | 4 x USB3.0/4 x USB2.0 | |
| Serial port | 4 x RS-232； 2 x RS-232 / RS-485 | |
| expansion slot | 1*M.2 2242/50 B-Key support 4G/5G;WIFI | |
| I/O port | DVI-I / 1 x HDMI/2 x GLAN / 4 x USB / Line-out / Mic-in/DC-IN | |
| physical characteristics | Dimension (W x H x D) | 257mm x176mm x 45mm |
| hole size (W x H) | 250mm x 162mm | |
| Net Weight | 1.76kg | |
| Operating System | Operating System | Windows10, Linux |
| Power | Input voltage | 9-36VDC Supports reverse connection protection |
| MaximPower Consumption | 18W | |
|
Display |
screen | 10.1" Full HD TFT |
| Resolving power | 1280 x 800 | |
| Color Dispay | 16.7MB | |
| Backlight | LED | |
| Backlight life | 30000hrsv | |
| Pixel pitch | 0.1695 x 0.1695 | |
| Luminance | 350 cd/cm² | |
| Contrast | 800 : 1 | |
| View angle | (L) 85/ (R) 85 / (T) 85 / (B) 85 | |
|
Environmental parameter |
Working temperature | 0 ~ 45° C (32~113°F) |
| 0 ~ 50° C (32~113°F) ；-20 ~ 60° C (-4 ~ 140°F) (RT) | ||
| Operating Temperature | -20 ~ 60° C (-4 ~ 140°F) | |
| Relative humidity | 10~95% RH@40°C,non-condensing | |
| Vibration | SSD applied: 1.5 Grms, 5 ~ 500 Hz, 1 hr/axis | |
| EMC | CE/FCC Class B | |
| waterproof | IP65 |
