Product Details:
|
| Size: | 32 Inch | Luminance: | 300cd/ M² |
|---|---|---|---|
| Gigabit Ethernet Interface: | 1-Route 10 / 100 Mbps Ethernet Port | GPU: | Mali-G52 1-Core-2EE |
| Product Size: | 781 * 475 * 59mm | Audio Interface: | 1-way MIC Interface |
| WIFI/BT: | 2.4G WIFI / BT4.2 | LAN: | 1 Route 10 / 100 / 1000 Mbps Ethernet Port |
| High Light: | RK3568 Android Touch Panel Pc,Android Touch Panel Pc EMMC,Touch Panel Pc Industrial TFT |
||
Product Description

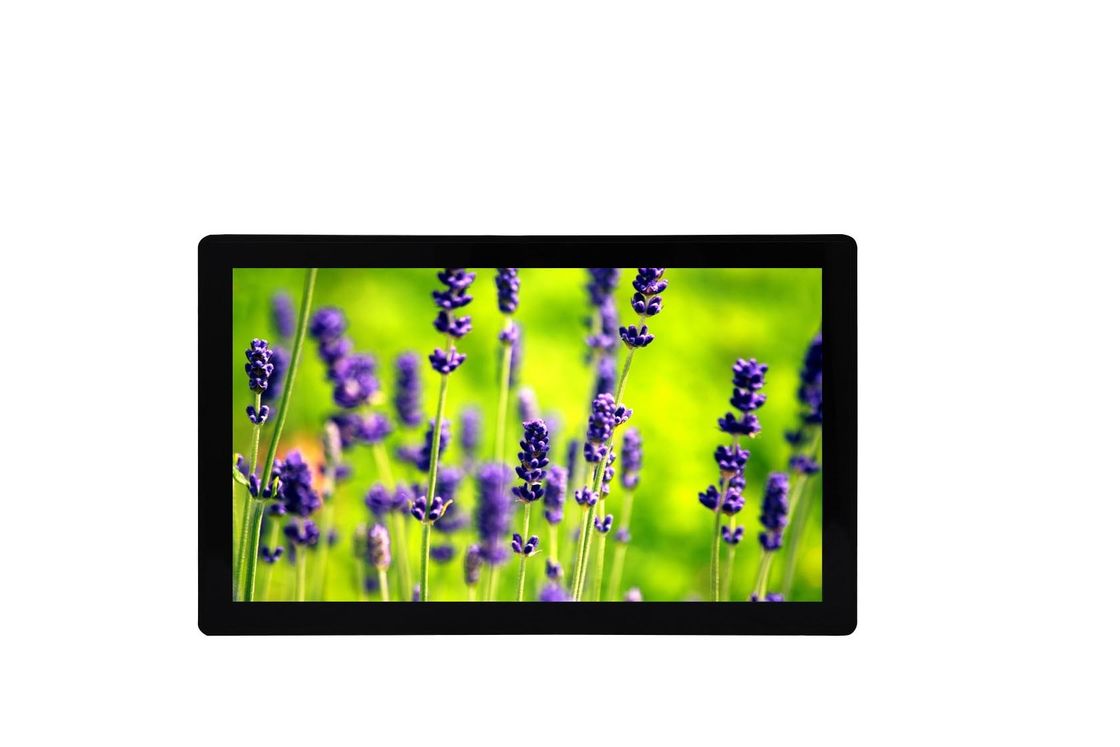

RK3568 Android Tablet Android Panel PC Waterproof touchscreen touch panel pc industrial for factory
LYA320K20C-W is a high-performance embedded integrated touch screen with the industrial core core Micro RK3568 (quad-core A55 main frequency 2.0 Ghz) CPU as the core. The product features a high-resolution 32-inch LED LCD display (resolution 1920 * 1080) and a 10-point capacitive touch screen. It supports USB, DI / DO, RS232, RS485, CAN, WIFI, BT interface, etc. It is suitable for industrial automation control, man-machine interface, small and medium-sized medical analyzer and other industry applications. Built-alone 0.8T NPU can be used for lightweight AI applications.
Product Feature
Product Performance
| Performance | Detail | |
|
System
|
CPU processor | RK3568 / Cortex A55 4 core main frequency at 2.0GHZ |
| Operating System | Android11.0/Ubuntu18.04/Linux 4.19 | |
| Running memory | 2GB/4GB | |
| EMMC | 16GB/32GB/64GB/128GB | |
| GPU | Mali-G52 1-Core-2EE | |
|
Display |
Size | 32 Inch |
| Resolving power |
1920 * 1080 |
|
| Touch form |
Capactive 10 touch |
|
| Luminance | 300 cd/ m² | |
| Angle of view | Full perspective | |
|
Material |
Material quality |
Plastic face frame, metal back cover |
| Way to stall |
Flat, outer, embedded |
|
| Product size |
781 * 475 * 59mm |
|
| IP protection grade | Industrial grade IP65 (operating face) | |
|
Power |
Power interface |
3 PIN*2.54mm terminal DC24V provides power supply |
| Power input | 12V-30V(Recommended value 24V) | |
|
Environmental Characteristics |
Working temperature |
-10℃ ~ 60℃ |
| Storage temperature | -20℃ ~ 70℃ | |
| Operating humidity | 5-90 RH% | |
| Serial port |
2 RS232,2 RS232 / RS485 switch; 6-way TTL serial port (reuse with serial port) |
|
| Audio Interface |
1-way MIC interface |
|
| LAN | 1 Route 10 / 100 / 1000 Mbps Ethernet port | |
| HDMI interface | 1-Way HDMI output, up to 3840 * 2160 resolution | |
| TF | 1-Route TF card interface | |
| SIM card | 1 Standard drawer-type interface with reserved eSIM interface | |
| RTC | 1 Built-in supercapacitor | |
| WIFI/BT | 2.4G WIFI / BT4.2 | |
| GPS | The GPS function 4G module should be replaced | |
| 4G | Expand the mini PCIE 4G module | |
| GPIO |
4-way GPIO, IO direction is input and output configurable, IO level is 5.0V; |
|
| USB2.0 |
1 Vertical plug interface USB 2.0,4 horizontal plug interface USB 2.0,1 built-in row pin (USB 2.0) |
|
| USB3.0 | 1 Vertical USB 3.0 (switch through dial switch) |
