Product Details:
|
| Resolving Power: | 1024*768 | Touch Form: | 4 Line Resistance Touch |
|---|---|---|---|
| CPU: | RK3568 / Cortex A55 4 Core Main Frequency At 2.0GHZ | Size: | W293mm×H222mm×54mm |
| GPU: | Mali-G52 1-Core-2EE | Way To Stall: | Embedded Installation |
| WIFI/BT: | 2.4G WIFI / BT4.2 | ||
| High Light: | Embedded Industrial Waterproof Tablet,Industrial Waterproof Tablet 600cd,Waterproof Tablet Android IP64 |
||
Product Description

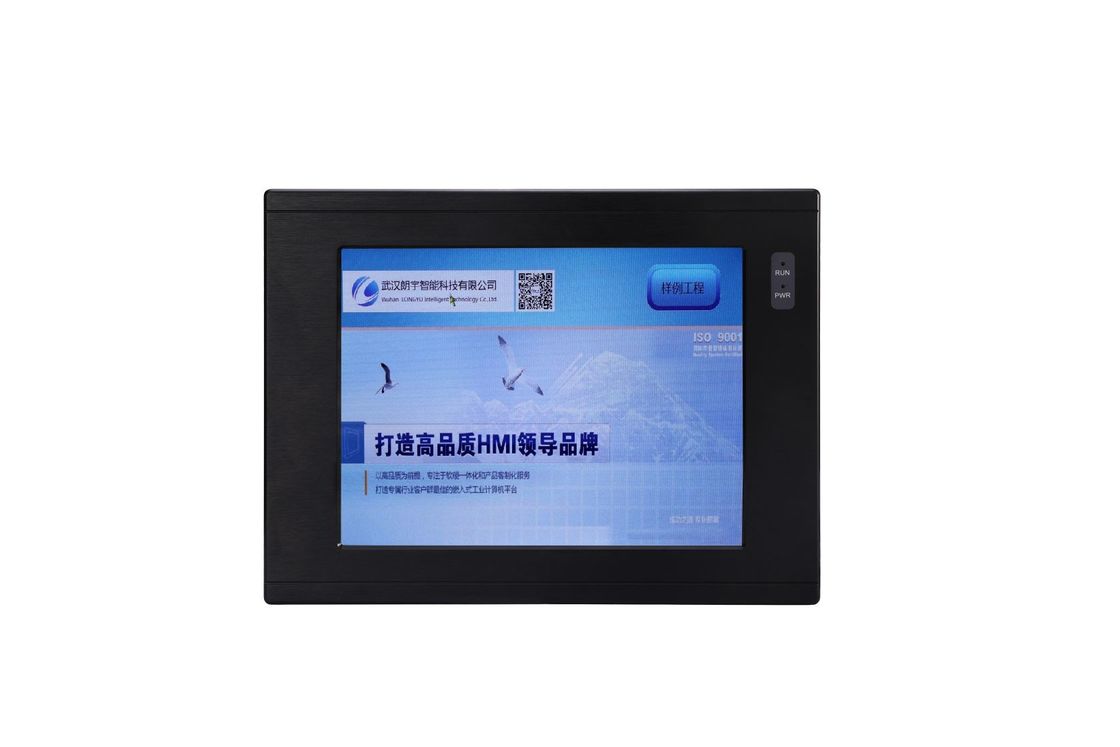

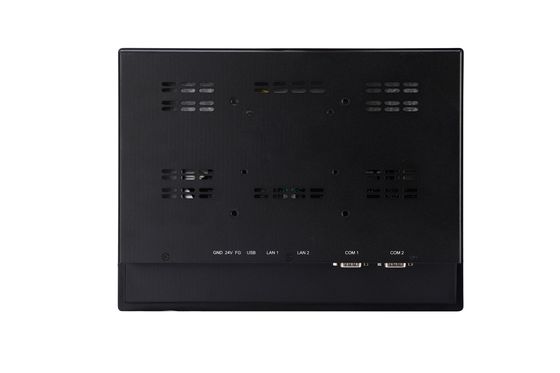

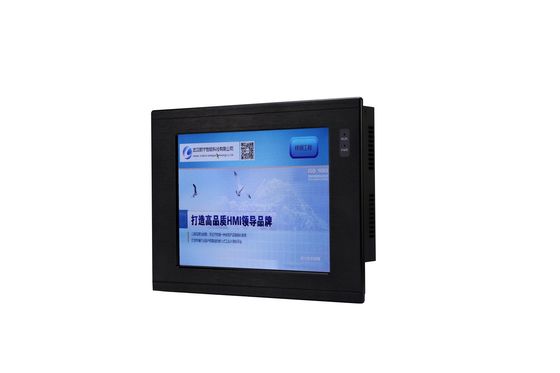

Industrial Waterproof Tablet Waterproof Embedded tablet brightness screen 600cd
Product Feature
LYA104K20I-R-W is a high-performance embedded integrated touch screen with the industrial core core Micro RK3568 (quad-core A55 main frequency 2.0 Ghz) CPU as the core. The product features a high-resolution 10.4-inch LED LCD display (with a resolution of 1024 * 768). it supports USB, Ethernet, DI / DO, RS232, RS485, CAN, WIFI, BT interface, etc. It is suitable for industrial automation control, man-machine interface, small and medium-sized medical analyzer and other industry applications. Built-alone 0.8T NPU can be used for lightweight AI applications.
APPLICATIONS
•Security
•CCTV
•Automation
•Kiosks
•Medical wisdom
•Beauty industry
Product Performance:
| Performance | Detail | |
|
System
|
CPU processor | RK3568 / Cortex A55 4 core main frequency at 2.0GHZ |
| Operating System | Android11.0/Ubuntu18.04/Linux 4.19 | |
| Running memory | 2GB/4GB | |
| EMMC | 16GB/32GB/64GB/128GB | |
| GPU | Mali-G52 1-Core-2EE | |
|
Display |
Size | 10.4 Inch |
| Resolving power | 1024 * 768 | |
| Touch form | 4 Line resistance touch | |
| Luminance | 600 cd/ m² | |
| Angle of view | Full perspective | |
|
Material |
Material quality | Aluminum alloy face frame, metal back cover |
| Way to stall | Embedded installation | |
| Product size | W293mm×H222mm×54mm | |
| IP protection grade | Industrial grade IP64 (operating face) | |
|
Power |
Power interface | 3 PIN*2.54mm terminal DC24V provides power supply |
| Power input | 12V-30V(Recommended value 24V) | |
|
Environmental Characteristics |
Working temperature | -20℃ ~ 70℃ |
| Storage temperature | -20℃ ~ 70℃ | |
| Operating humidity | 5-90 RH% | |
| Serial port |
3 RS232,2 RS232 / RS485 / CAN switch; 6-way TTL serial port (reuse with serial port) |
|
| Gigabit Ethernet interface | Ear integrated interface | |
|
Gigabit Ethernet interface |
1 Route 10 / 100 / 1000 Mbps Ethernet port | |
| HDMI interface | 1-Way HDMI output, up to 3840 * 2160 resolution | |
| TF | 1-Route TF card interface | |
| SIM card | 1 Standard drawer-type interface with reserved eSIM interface | |
| RTC | 1 Built-in supercapacitor | |
| WIFI/BT | 2.4G WIFI / BT4.2 | |
| GPS | The GPS function 4G module should be replaced | |
| 4G | Expand the mini PCIE 4G module | |
| GPIO | 4 input and output: 2 optical coupling input, 2 relay dry contact output; | |
| USB2.0 | 1 Vertical plug interface USB 2.0,4 horizontal plug interface USB 2.0,1 built-in row pin (USB 2.0) | |
| USB3.0 | 1 Vertical USB 3.0 (switch through dial switch) |
