Product Details:
|
| Size: | 12.1 Inch | GPU: | Mali-G52 1-Core-2EE |
|---|---|---|---|
| Way To Stall: | Embedded Installation | Resolving Power: | 1024*768 |
| WIFI/BT: | 2.4G WIFI / BT4.2 | HDMI: | 1-Way HDMI Output, Up To 3840 * 2160 Resolution |
| LAN: | 1 Route 10 / 100 / 1000 Mbps Ethernet Port | Audio Interface: | The 1-way MIC Interface |
| High Light: | Capacitive Panel PC Industrial IP65,Panel PC Industrial IP65 WIFI,BT Waterproof Touch Panel |
||
Product Description

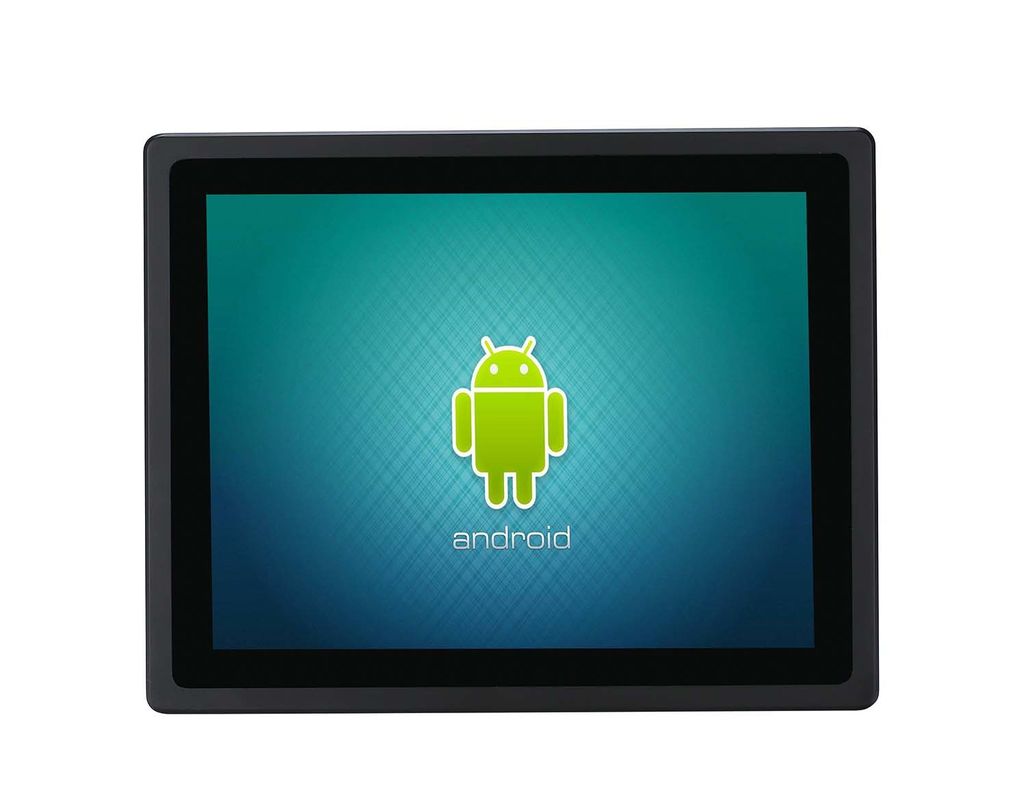

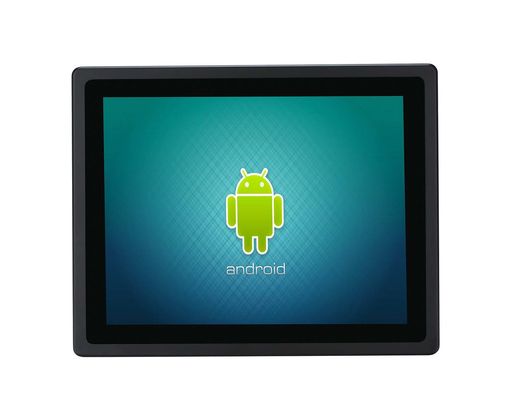

12.1 inch PC Industrial Waterproof Touch Screen Monitor WIFI BT Front Panel IP65 Capacitive Touch Screen
Product Feature
LYA121K20C-W-BT is a high-performance embedded integrated touch screen with the industrial Rockchip RK3568 (quad-core A55 main frequency 2.0 Ghz) CPU as the core. The product features a high-resolution 12.1-inch LED LCD display (resolution 1024*768) and a 10-point capacitive touch screen. It supports USB, Ethernet, DI / DO, RS232, RS485, CAN, WIFI, BT interface, etc. It is suitable for industrial automation control, HMI, small and medium-sized medical analyzer and other industry applications. Built-alone 0.8T NPU can be used for lightweight AI applications.
Product Performance:
| Performance | Detail | |
|
System
|
CPU processor | RK3568 / Cortex A55 4 core main frequency at 2.0GHZ |
| Operating System | Android11.0/Ubuntu18.04/Linux 4.19 | |
| Running memory | 2GB/4GB | |
| EMMC | 16GB/32GB/64GB/128GB | |
| GPU | Mali-G52 1-Core-2EE | |
|
Display
|
Size | 12.1 Inch |
| Resolving power | 1024 * 768 | |
| Touch form | Capactive 10 touch | |
| Luminance | 300 cd/ m²(Select a 450cd / m² s) | |
| Angle of view | Full perspective | |
|
Material
|
Material quality | Plastic face frame, metal back cover |
| Way to stall | Flat, outer, embedded | |
| IP protection grade | Industrial grade IP65 dustproof and water proof (operating face) | |
|
Power
|
Power interface | 3 PIN*2.54mm terminal DC24V provides power supply |
| Power input | 12-30V Recommended value of 24V | |
|
Environmental Characteristics
|
Working temperature | -10℃ ~ 60℃ |
| Storage temperature | -20℃ ~ 70℃ | |
| Operating humidity | 5-90 RH% | |
| Serial port |
3 RS232,2 RS232 / RS485 / CAN switch; 6-way TTL serial port (reuse with serial port) |
|
| Audio interface | The 1-way MIC interface | |
| Gigabit Ethernet interface | 1 Route 10 / 100 / 1000 Mbps Ethernet port | |
| HDMI interface | 1-Way HDMI output, up to 3840 * 2160 resolution | |
| TF | 1-Route TF card interface | |
| SIM card | 1 Standard drawer-type interface with reserved eSIM interface | |
| RTC | 1 Built-in supercapacitor | |
| WIFI/BT | 2.4G WIFI / BT4.2 | |
| 4G interface | The GPS function 4G module should be replaced | |
| GPIO interface | Expand the miniPCIE 4G module | |
| GPIO | 4 input and output: 2 optical coupling input, 2 relay dry contact output; | |
| USB2.0 | 1 Vertical plug interface USB 2.0,4 horizontal plug interface USB 2.0,1 built-in row pin (USB 2.0) | |
| USB3.0 | 1 Vertical USB 3.0 (switch through dial switch) |
