Product Details:
|
| Material: | Plastic Face Frame, Metal Back Cover | Resolution: | 1024*600 |
|---|---|---|---|
| Touch Form: | Capactive 10 Touch | Operating System: | Android11.0 Or Linux |
| CPU Processor: | A133 | Running Memory: | 2GB/4GB |
| EMMC: | 16GB/32GB/64GB/128GB | IP Grade: | Industrial Grade IP65 Dustproof And Water Proof |
| High Light: | EMMC Industrial Touch Screen Tablet,Industrial Touch Screen Tablet Embedded,Android Touch Screen Tablet A133 |
||
Product Description

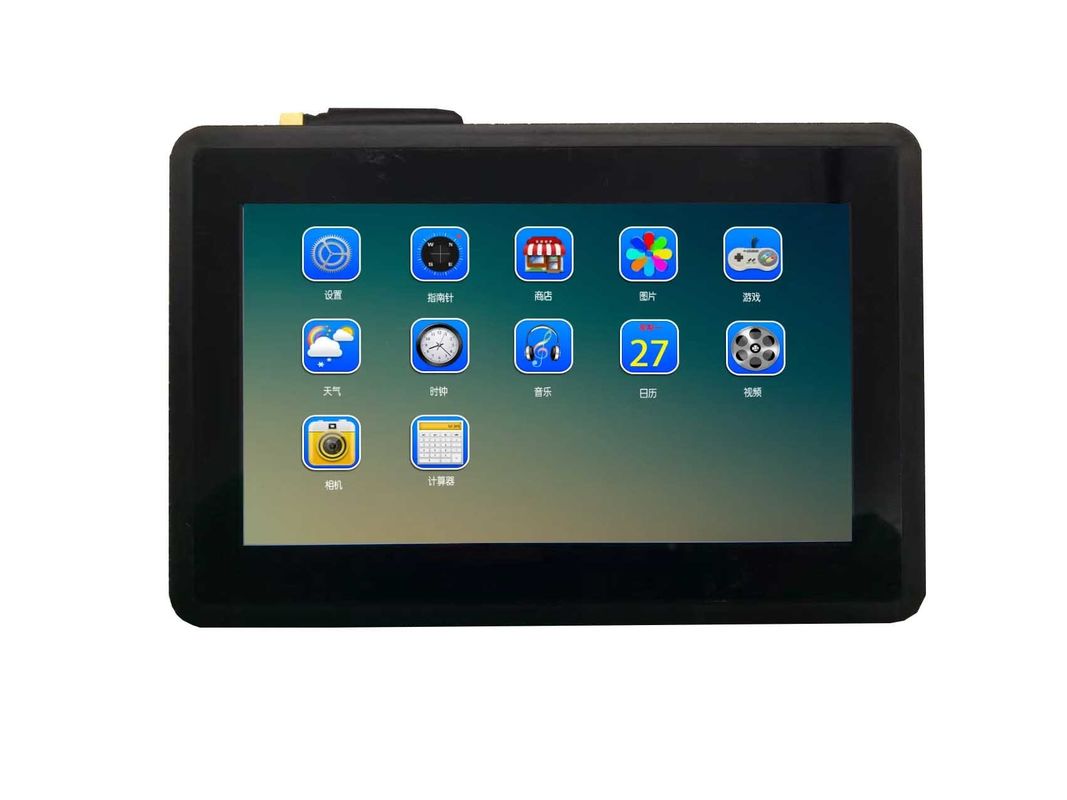

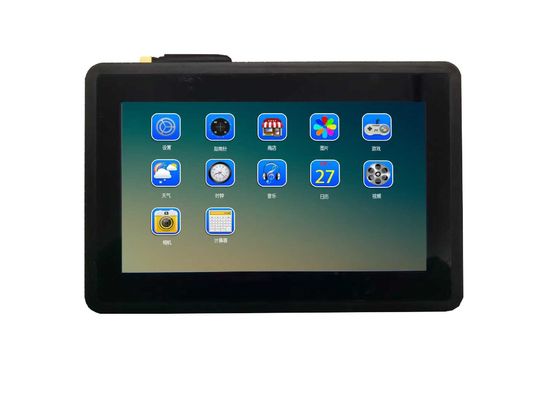

7 Inch Android Industrial Touch Screen Tablet
LYA070K10C is a high-performance embedded integrated touch screen with the industrial-grade full ambition A133 (four Cortex-A53) CPU as the core. The product features a high-resolution 7.0-inch LED LCD display (resolution 1024 * 600), a 10-point capacitive touch screen, and supports USB, Ethernet, DI / DO, RS232, WIFI and other interfaces. It is suitable for industrial automation control, human-machine interface, small and medium-sized medical analyzer and other industry applications.
Product Performance
|
|
parameter |
information |
|
System |
CPU processor |
A133(Quadenuclear Cortex-A53)1.2GHZ |
|
Operating System |
Android10.0 |
|
|
Running memory |
1GB |
|
|
EMMC |
8GB |
|
|
GPU |
GE8300 |
|
|
Display |
Size |
7.0 Inch |
|
Resolving power |
1024 * 600 |
|
|
Touch form |
Capactive 10 touch |
|
|
Luminance |
300 cd/ m² |
|
|
Angle of view |
Full perspective |
|
|
Material |
Material quality |
Plastic face frame, metal back cover |
|
Way to stall |
Flat, outer, embedded |
|
|
Dimension |
192 * 128 * 28mm |
|
|
IP protection grade |
Industrial grade IP65 dustproof water proof (operating face) |
|
|
Source |
Power interface |
3 PIN*2.54mm terminal DC24V provides power supply |
|
Power input |
10.6V-13.2V(Recommended value 12V) |
|
|
Environmental Character istics |
Working temperature |
-10℃ ~ 60℃ |
|
Storage temperature |
-20℃ ~ 70℃ |
|
|
Operating humidity |
5-90 RH% |
|
|
Serial port |
2 Route RS232 / TTL, 1 route RS485 / TTL； |
|
|
Audio interface |
1-way MIC interface |
|
|
Gigabit Ethernet interface |
1-Route 10 / 100 Mbps Ethernet port |
|
|
HDMI interface |
/ |
|
|
TF |
1-Route TF card interface |
|
|
SIM card |
1 Standard drawer-type interface with reserved eSIM interface |
|
|
RTC |
1 Road Hardware Clock |
|
|
WIFI/BT |
2.4G WIFI |
|
|
4G interface |
/ |
|
|
GPIO interface |
4-way GPIO, IO direction is input and output configurable, and IO level is 5.0V； |
|
|
USB2.0 |
1 USB 2.0,3 built-in pins (USB 2.0) |
|
|
USB3.0 |
1 Horizontal insertion interface, USB 3.0 |
Company introduction
Wuhan Longyu Intelligent Technology Co., Ltd has a strong R & D, production, sales and management team. Relying on independently developed embedded computer software system and hardware platform technology, we have carefully developed a series of products, the main products include: man-machine interface touch screen, industrial tablet computer all-in-one, ARM industrial motherboard, industrial display, etc. We strive to promote the upgrading of China's manufacturing industry, the research and development of products are widely used in intelligent transportation, automation equipment, terminal self-help equipment, industrial control, electric power, military industry, finance, network security, Marine manufacturing, medical instruments, numerical control, instrumentation, scientific research and other industries, with many well-known enterprises at home and abroad to maintain long-term stable cooperation.
