Product Details:
|
| Backlight Technology: | Led | Contrast Ratio: | 3000:1 |
|---|---|---|---|
| Frequency Of Refresh: | 60Hz | Power Input: | DC 12V3A (50/60 Hz) |
| Display Resolution: | 1920x1080 | OSD Language: | English, Chinese |
| OSD Control: | Button | Wall Hanging Form: | VESA,MIS-E,C |
| High Light: | DVI Industrial Touch LCD Monitor,Industrial Touch LCD Monitor OSD,Kiosks HDMI Monitor LCD |
||
PRODUCT DESCRIPTION

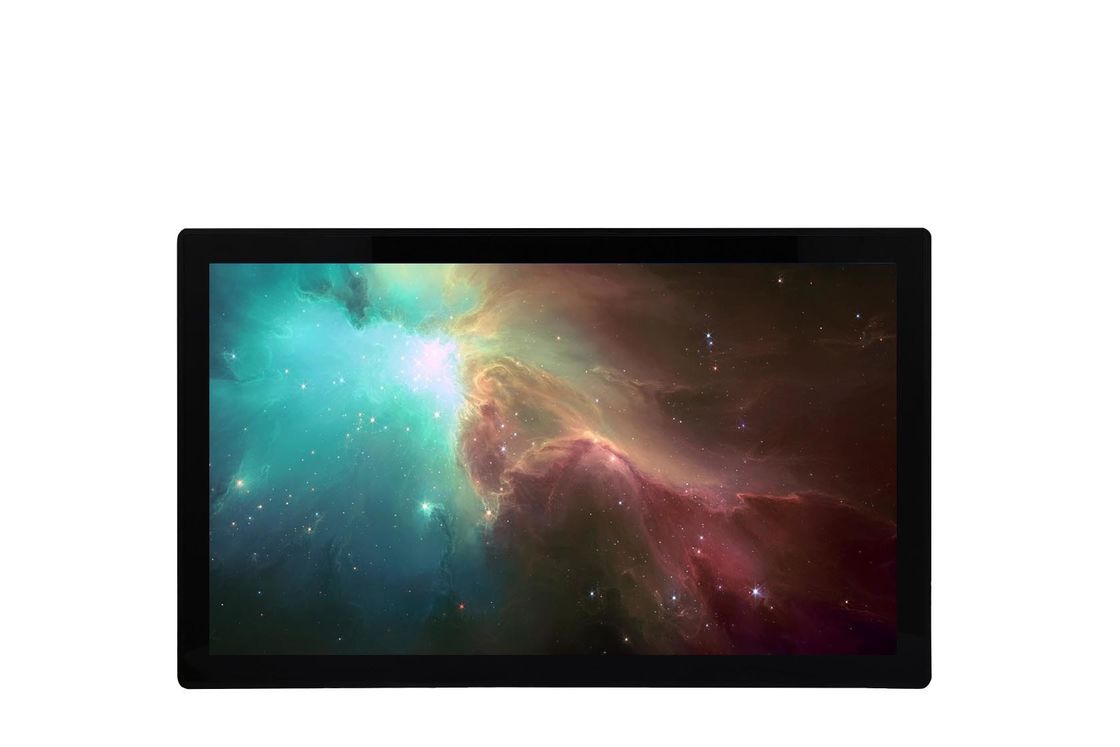

Industrial LCD touch monitor displays with VGA , DVI , HDMI input for industrial use
ITD Industrial chassis LCD monitors come with rugged all steel frames and highly-durable glass front surface provide the durability needed for demanding industrial harsh environments. Industrial touch screen chassis monitor displays are designed for digital signage, kiosks, POI, OEM machinery, transportation depots, theme and amusement parks, airports and railroad terminals.HD display color realistic, excellent workmanship and quality assurance, simple wireless space saving, ergonomic design is stable and reliable, intelligent touch operation of writing is smooth, touch software, widely used.
SPECIFICATION
|
|
| Backlight technology | Led |
| Luminance | 250 cd/m2 |
| Contrast ratio | 3000:1 |
| Visual Angle | Horizontal: 178 / Vertical: 178 |
| Response time | 25ms(GTG) |
| Display color | 16.7M Colors |
| Display resolution | 1920x1080 (16:9) |
| Frequency of refresh | 60Hz |
| Input resolution | 1920x1080 @ 60Hz |
| Junctor | VGA / DVI / HDMI |
|
|
| OSD control | button |
| OSD language | English, Chinese |
|
|
| Glass | 3mm black screen screen tempered glass |
| Touch point number | 10 |
| Touch technology | Projective capacitor (G + G) |
| The pen type | Fingers, hands with gloves, and a conductive stylus |
| Waterproof performance | Touch surface is not affected by water droplets or water vapor |
| Calibration | No calibration tool |
| Response time | 7ms-12ms |
| Interlinkage | USB2.0(Type B socket) |
| Multitouch control protocol support | Windows |
| Operating system | Win 7/8,Android,Linux |
|
|
| Dimension | 522.3 x 323.7 x 42.7 mm |
| Packing measurement | 685 x 155 x 475 mm |
| Weight (approx) | 6 kg / 8 kg |
| Wall hanging form | VESA,MIS-E,C |
|
|
| Power input | DC in: DC 12V3A (50/60 Hz) |
| Power | ≤ 25W (typ.) |
| Standby power | ≤ 2W (typ.) |
| Built-in speakers | N |
|
|
| Work environment | 0 °C ~ 50 °C, 90% RH |
| Storage environment | -20 °C ~ 60 °C, 90% RH |
|
|
| Other | Bracket / power cord / VGA cord / USB cord / power adapter |
APPLICATIONS
•Security
•CCTV
•Automation
•Kiosks
