Product Details:
|
| Size: | 18.5” | Backlight Technology: | Led |
|---|---|---|---|
| Contrast Ratio: | 3000:1 | Frequency Of Refresh: | 60Hz |
| Display Color: | 262K(6bit) Colors | Power Input: | DC 12V3A (50/60 Hz) |
| OEM/ODM: | YES | Storage Environment: | -20 °C ~ 60 °C, 90% RH |
| High Light: | ODM Industrial LCD Monitor,Industrial LCD Monitor GTG,Security LCD Monitor FCC |
||
PRODUCT DESCRIPTION

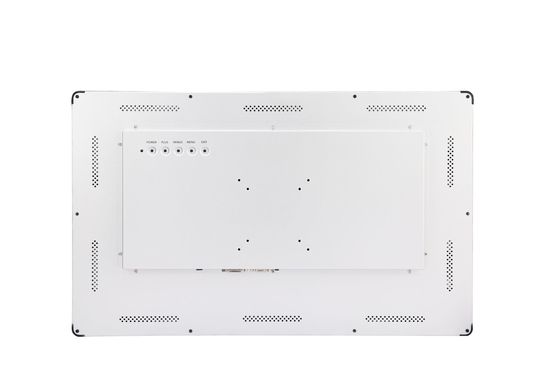

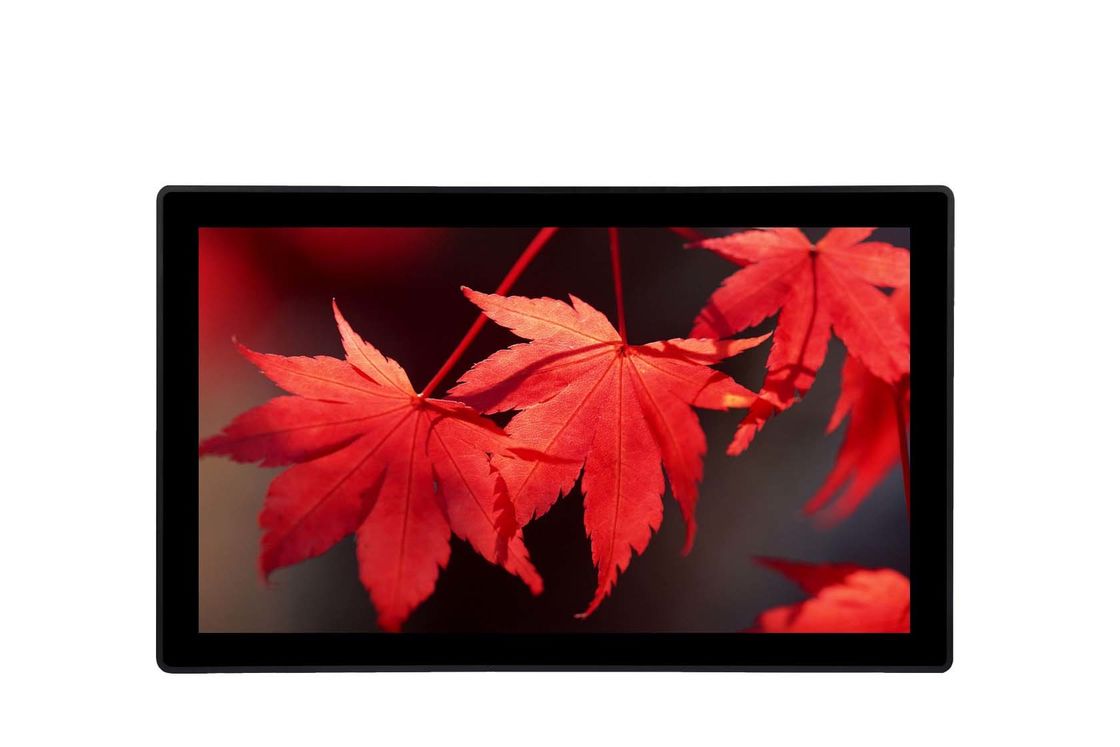

Security Industrial LCD Monitor 18.5 Inch 1920*1080 BNC Port
HD display color realistic, excellent workmanship and quality assurance, simple wireless space saving, ergonomic design is stable and reliable, intelligent touch operation of writing is smooth, touch software, widely used.
SPECIFICATION
|
|
| Backlight technology | Led |
| Luminance | 250 cd/m2 |
| Contrast ratio | 3000:1 |
| Visual Angle | Horizontal: 178 / Vertical: 178 |
| Response time | 25ms(GTG) |
| Display color | 16.7M Colors |
| Display resolution | 1366x768 (16:9) |
| Frequency of refresh | 60Hz |
| Input resolution | 1366x768 @ 60Hz |
| Junctor | VGA / DVI / HDMI |
|
|
| OSD control | button |
| OSD language | English, Chinese |
|
|
| Glass | 3mm black screen screen tempered glass |
| Touch point number | 10 |
| Touch technology | Projective capacitor (G + G) |
| The pen type | Fingers, hands with gloves, and a conductive stylus |
| Waterproof performance | Touch surface is not affected by water droplets or water vapor |
| Calibration | No calibration tool |
| Response time | 7ms-12ms |
| Interlinkage | USB2.0(Type B socket) |
| Multitouch control protocol support | Windows |
| Operating system | Win 7/8,Android,Linux |
|
|
| External dimensions | 465 x 285.5 x 42.5 mm |
| Open hole dimensions | 522x 313.5mm |
| Weight (approx) | 6 kg / 8 kg |
| Wall hanging form | VESA,MIS-E,C |
|
|
| Power input | DC in: DC 12V3A (50/60 Hz) |
| Power | ≤ 25W (typ.) |
| Standby power | ≤ 2W (typ.) |
| Built-in speakers | / |
|
|
| Work environment | 0 °C ~ 50 °C, 90% RH |
| Storage environment | -20 °C ~ 60 °C, 90% RH |
|
|
| Other | Bracket / power cord / VGA cord / USB cord / power adapter |
FEATURES
•High contrast color TFT LCD display supports resolution up to 1920*1080
•Offer Bracket / power cord / VGA cord / USB cord / power adapter
•Advanced OSD control for picture quality adjustment
•All steel construction designed for harsh and industrial environments
•The LED backlight enables optimal viewing in all lighting conditions
•CE,FCC, RoHS Compliance
