Product Details:
|
| Product Size: | 32 Inch | Power Input: | DC 12V3A |
|---|---|---|---|
| Display Resolution: | 16:9 | Connector: | VGA / DVI / HDMI |
| Luminance: | ≥250 Cd/m2 | Display Color: | 16.7M Colors |
| High Light: | VGA Industrial Computer Panel PC,Industrial Computer Panel PC 60Hz,Panel PC Monitor GTG |
||
PRODUCT DESCRIPTION

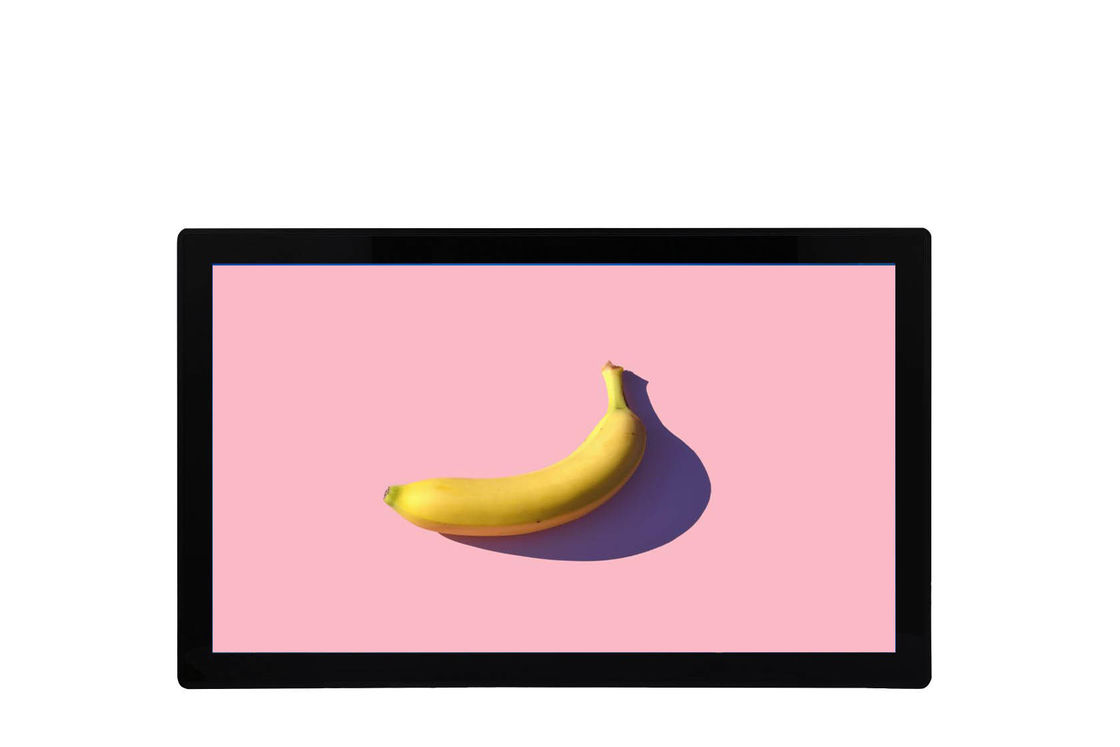

LCD Touch Screen HDMI VGA Monitor Industrial Computer Panel PC
LY-A320 Monitor HD display color realistic, excellent workmanship, quality assurance, simple wireless space saving, ergonomic design is stable and reliable, intelligent touch operation is smooth writing, touch software, widely used.
Applications:
Mainly used in closed-circuit surveillance systems, car video, PC operating systems, vehicle navigation systems supporting display, can also be applied in support POS, ATM and instrumentation, industrial automation display systems.
SPECIFICATION
Backlight technology:Led
Luminance:≥250 cd/m2
Contrast ratio:Horizontal: 178 / Vertical: 178
Response time:25ms(GTG)
Display color:16.7M Colors
Display resolution:1920x1080 (16:9)
Frequency of refresh:60Hz
Input resolution:1920x1080 @ 60Hz
Junctor:VGA / DVI / HDMI
Touch point number:10
Glass:3mm black screen screen tempered glass
Touch technology:Projective capacitor (G + G)
The pen type:Fingers, hands with gloves, and a conductive stylus
Waterproof performance:Touch surface is not affected by water droplets or water vapor
Response time:7ms-12ms
Interlinkage:USB2.0(Type B socket)
Multitouch control protocol support:Windows
Dimension:780.2 x 474.8 x 54.5 mm
Opening size:772 x 467 mm
Working environment:0 °C ~ 50 °C, 90% RH
Storage environment:-20 °C ~ 60 °C, 90% RH
Product Performance:
|
32-inch industry monitor |
| Backlight technology | Led |
| Luminance | ≥250 cd/m2 |
| Contrast ratio | 3000:1 |
| Visual Angle | Horizontal: 178 / Vertical: 178 |
| Response time | 25ms(GTG) |
| Display color | 16.7M Colors |
| Display resolution | 1920x1080 (16:9) |
| Frequency of refresh | 60Hz |
| Input resolution | 1920x1080 @ 60Hz |
| Junctor | VGA / DVI / HDMI |
|
|
| OSD control | button |
| OSD language | English, Chinese |
|
|
| Glass | 3mm black screen screen tempered glass |
| Touch point number | 10 |
| Touch technology | Projective capacitor (G + G) |
| The pen type | Fingers, hands with gloves, and a conductive stylus |
| Waterproof performance | Touch surface is not affected by water droplets or water vapor |
| Calibration | No calibration tool |
| Response time | 7ms-12ms |
| Interlinkage | USB2.0(Type B socket) |
| Multitouch control protocol support | Windows |
| Operating system | Win 7/8,Android,Linux |
|
|
| Dimension |
780.2 x 474.8 x 54.5 mm |
| Packing measurement |
820 x 570 x 150 mm |
| Weight (approx) | 8 kg / 10 kg |
| Wall hanging form | VESA,MIS-E,C |
|
|
| Power input | DC in: DC 12V3A (50/60 Hz) |
| Power | ≤ 25W (typ.) |
| Standby power | ≤ 2W (typ.) |
| Built-in speakers | N |
|
|
| Working environment | 0 °C ~ 50 °C, 90% RH |
| Storage environment | -20 °C ~ 60 °C, 90% RH |
|
|
| Other | Bracket / power cord / VGA cord / USB cord / power adapter |
