Product Details:
|
| Product Size: | 21.5 Inch | OEM/ODM: | YES |
|---|---|---|---|
| LCD Screen: | 21.5-inch TFT LCD, LED Backlight, Color 65536 Bits | Display Brightness: | 600cd/m2 |
| Touch Screen: | Four Wire Resistive | Interface: | 2*RS232、3*RS485 、2*LAN |
| Operational Temperature: | -20℃ To +70℃ | Product Size: | W533 Mm×H324mm×D48mm |
| High Light: | ODM Touch Screen Touch Panel,Touch Screen Touch Panel 21.5 Inch,Plc HMI Touch Panel |
||
Product Description

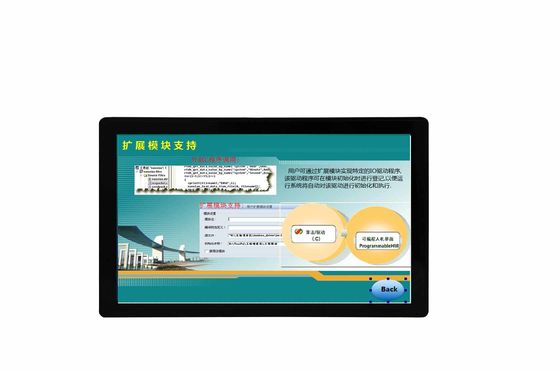

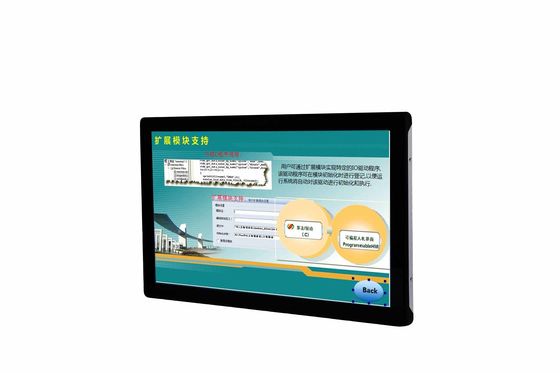

21.5 " Plc Hmi Touch Screen Tablet Industry Hmi Touch Screen touch Panel with high brightness
HMIAT6215C is a high-performance embedded integrated man-machine interface based on the industrial-grade whole-purpose T3 Cortex A7 quad-core 1.2G main frequency CPU. This product is a 21.5-inch human-machine interface product designed by domestic platform device, which uses 21.5-inch high-light LED LCD display (resolution 1920*1080) and 10-point capacitive touch screen. Meanwhile, Lonkon industrial configuration software is pre-installed.
Specifications:
● LCD screen:21.5-inch TFT LCD, LED backlight, color 65536 bits
● Resolution:1920*1080
● Display brightness:600cd/m2
● C P U:Cortex A7,four core 1.2 Ghz
● Memory:1G DDR3 RAM
● Touch screen:Four wire resistive, click more than 1 million times
● Storage device:8G eMMC electronic disk
● SD card extension:Optional, Max scalability 16G
Product Performance:
| ·LCD screen: | : | 21.5-inch TFT LCD, LED backlight, color 65536 bits |
| ·Resolution | : | 1920*1080 |
| Display brightness | : | 600cd/m2 |
| ·C P U | : | Cortex A7,four core 1.2 Ghz |
| ·Memory | : | 1G DDR3 RAM |
| ·Touch screen | : | Four wire resistive, click more than 1 million times |
| ·Storage device | : | 8G eMMC electronic disk |
| ·SD card extension | : | Optional, Max scalability 64G |
| ·Interface | : | 2*RS232R,3*S485 Expandable 2*CAN port,2*LAN |
| ·Extension interface | : | 2*USB 2.0(HOST) |
| ·Real time clock | : | Available |
| ·Buzzer | : | Available |
| ·Operational temperature | : | -20℃ to +70℃ |
| ·Degree of protection | : | IP 65( operating surface) |
| ·Input voltage | : | 12V to 30V Wide range input voltage |
| ·Anti interference | : | Power frequency magnetic field interference level 5,Magnetic field strength 100A / M |
| ·Product Size | : |
W533 mm×H324mm×D48mm |
| ·Opening size | : |
W522mm×H313mm |
