Product Details:
|
| Product Size: | 7 Inch | Resolution Ratio: | 800*480 |
|---|---|---|---|
| Display Brightness: | 450cd/m2 | Touch Screen: | Four Wire Resistive |
| C P U: | Cortex A7,four Core 1.2 Ghz | Memory: | 1G DDR3 RAM |
| Operational Temperature: | -40℃-70℃ | Degree Of Protection: | IP 65 |
| High Light: | Resistive HMI Control Panel,HMI Control Panel Operator,Control Panel Industrial RS485 |
||
Product Description

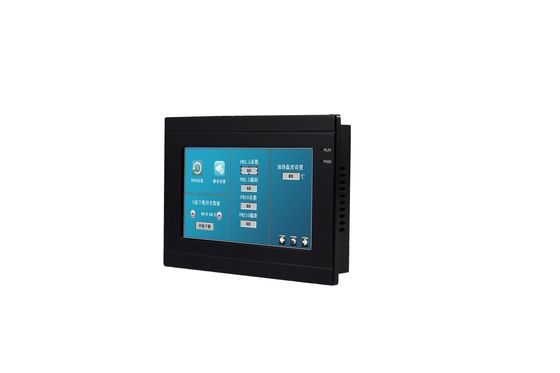

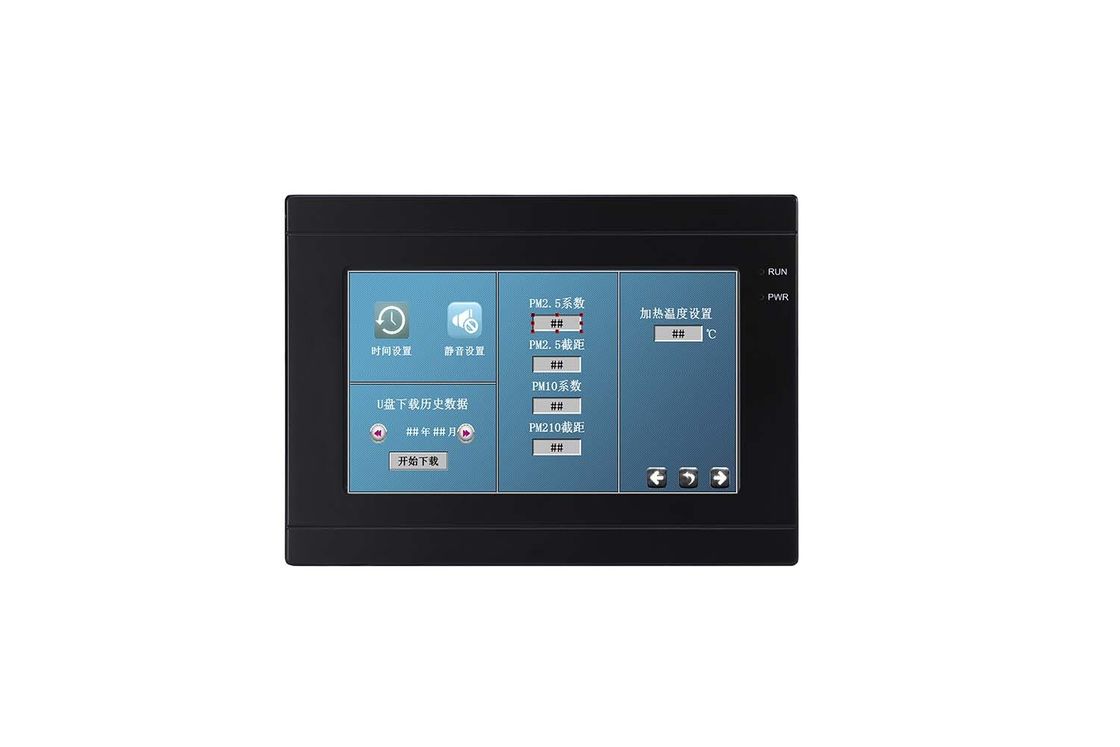

Industrial Control 7" RS485 HMI Operator Panel Resistive PC -40℃-70℃
HMIAT6070KT is a high-performance embedded integrated man-machine interface based on the industrial-grade T3 Cortex A7 quad-core 1.2G CPU. This product is an industrial 7 "human-machine interface product, using 7" high-light LED LCD display (resolution 800*480), four wire resistance touch screen. Meanwhile, Lonkon industrial configuration software is pre-installed.
Specifications:
Product Performance:
| ·LCD screen: | : | 7-inch TFT LCD, LED backlight, color 65536 bits |
| ·Resolution | : | 800*480 |
| Display brightness | : | 450cd/m2 |
| ·C P U | : | Cortex A7,four core 1.2 Ghz |
| ·Memory | : | 1G DDR3 RAM |
| ·Touch screen | : | Four wire resistive, click more than 1 million times |
| ·Storage device | : | 8G eMMC electronic disk |
| ·SD card extension | : | Optional, Max scalability 64G |

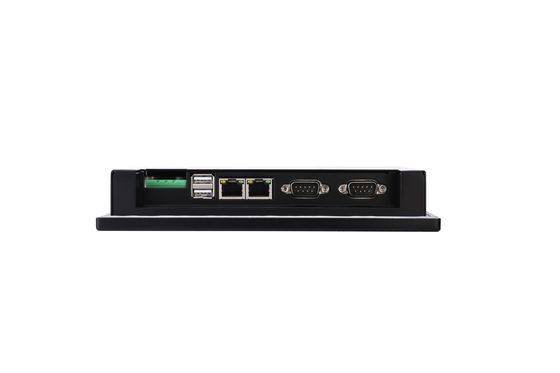

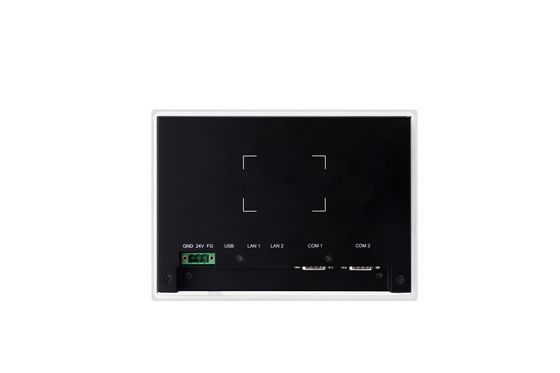

| ·Interface | : | 2*RS232R,3*S485 Expandable 2*CAN port,2*LAN |
| ·Extension interface | : | 2*USB 2.0(HOST) |
| ·Real time clock | : | Available |
| ·Buzzer | : | Available |
| ·Operational temperature | : | -40℃ to +70℃ |
| ·Degree of protection | : | IP 65( operating surface) |
| ·Input voltage | : | 12V to 30V Wide range input voltage |
| ·Anti interference | : | Power frequency magnetic field interference level 5,Magnetic field strength 100A / M |
| ·Product Size | : | W206 mm×H148 mm×36 mm |
| ·Opening size | : | W191mm×H132.6 mm |
