Product Details:
|
| CPU: | Intel®Celeron™ J6413 | Operating System: | Windows10, Linux, |
|---|---|---|---|
| Working Temperature: | -0℃ ~ 45℃ | Controller: | USB Port |
| EMMC: | 1 X 3.0" SATA + 1*M.2 2280 M-key | Color Dispay: | 16.7MB |
| Product Size: | 361mm X285mm X 52mm | Hole Size: | 346mm X 272mm |
| High Light: | Capacitive All In One PC Touchscreen,All In One PC Touchscreen RoHS,All In One PC Touch Screen EMC |
||
Product Description

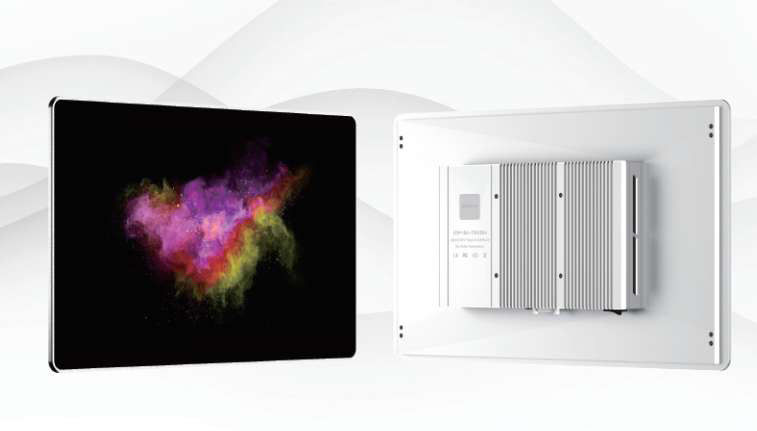

15 inch Capacitive Touch Screen All-in-One PC Touchscreen
Specifications:
● Intel® Celeron® J6413 main frequency 1.8-3.0Ghz four core four threads
● 4GB DDR4L-3200MT/S high speed memory, up to 16G support;
● Dual Intel I211AT 10M/100M/1000M adaptive Gigabit network chips
● 6 serial ports (up to 2 x RS485), 4*USB3.0, 1*HDMI, 1*DP
● WiFi, Bluetooth, 4G, 5G and other wireless configuration optional
● Panel mounting hole size (recommended) 346mm x 272mm(W x H)
● Peripheral size 361mm x285mm x 52mm (W x H x D)
● Installation method: Support 75mm*75mm VESA installation and front embedded installation
Product Performance:
|
System parameter |
CPU | Intel®Celeron™ J6413 |
| frequency | 1.8~3.0GHz | |
| Running memory | Support DDR4-2133MT/s, Up to 16GB | |
| EMMC | 1 x 3.0" SATA + 1*M.2 2280 M-key | |
|
I/O |
network | 2 x Intel i211 1000Mbps RJ-45 |
| Mic | Realtek ACL662 | |
| USB | 4 x USB3.0/4 x USB2.0 | |
| Serial port | 4 x RS-232； 2 x RS-232 / RS-485 | |
| expansion slot | 1*M.2 2242/50 B-Key support 4G/5G;WIFI | |
| I/O port | DVI-I / 1 x HDMI/2 x GLAN / 4 x USB / Line-out / Mic-in/DC-IN | |
| Physical characteristics | Dimension (W x H x D) |
361mm x285mm x 52mm |
| hole size (W x H) |
346mm x 272mm |
|
| Net Weight |
3.56kg |
|
| Operating System | Operating System | Windows10, Linux |
| Power | Input voltage | 9-36VDC Supports reverse connection protection |
| MaximPower Consumption | 25W | |
|
Display |
screen | 15" Full HD TFT |
| Resolving power |
1024×768 |
|
| Color Dispay | 16.7MB | |
| Backlight | LED | |
| Backlight life | 50000hrs | |
| Pixel pitch |
0.297×0.297 |
|
| Luminance | 350 cd/cm² | |
| Contrast | 700 : 1 | |
| View angle | (L) 80/ (R) 80 / (T) 80 / (B) 80 | |
|
Environmental parameter |
Working temperature | 0 ~ 45° C (32~113°F) |
| 0 ~ 50° C (32~113°F) ；-20 ~ 60° C (-4 ~ 140°F) (RT) | ||
| Operating Temperature | -20 ~ 60° C (-4 ~ 140°F) | |
| Relative humidity | 10~95% RH@40°C,non-condensing | |
| Vibration | SSD applied: 1.5 Grms, 5 ~ 500 Hz, 1 hr/axis | |
| EMC | CE/FCC Class B | |
| waterproof | IP65 |
