Product Details:
|
| Material: | Plastic Face Frame, Metal Back Cover | Operating System: | Android11.0/Ubuntu18.04/Linux 4.19 |
|---|---|---|---|
| CPU: | Cortex A55 | IP Grade: | Industrial Grade IP65 Dustproof And Water Proof |
| Power Input: | 12-30V Recommended Value Of 24V | Luminance: | 350cd/ M² |
| Angle Of View: | Full Perspective | Gigabit Ethernet Interface: | 1-Route 10 / 100 Mbps Ethernet Port |
| High Light: | OEM IP65 Industrial PC,ODM IP65 Industrial PC,Embedded IPS Android Tablet |
||
Product Description
1280*1080 PC IPS Industrial Android Tablet ODM and OEM Tablet for industry applications

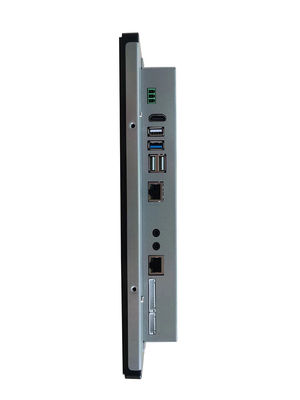

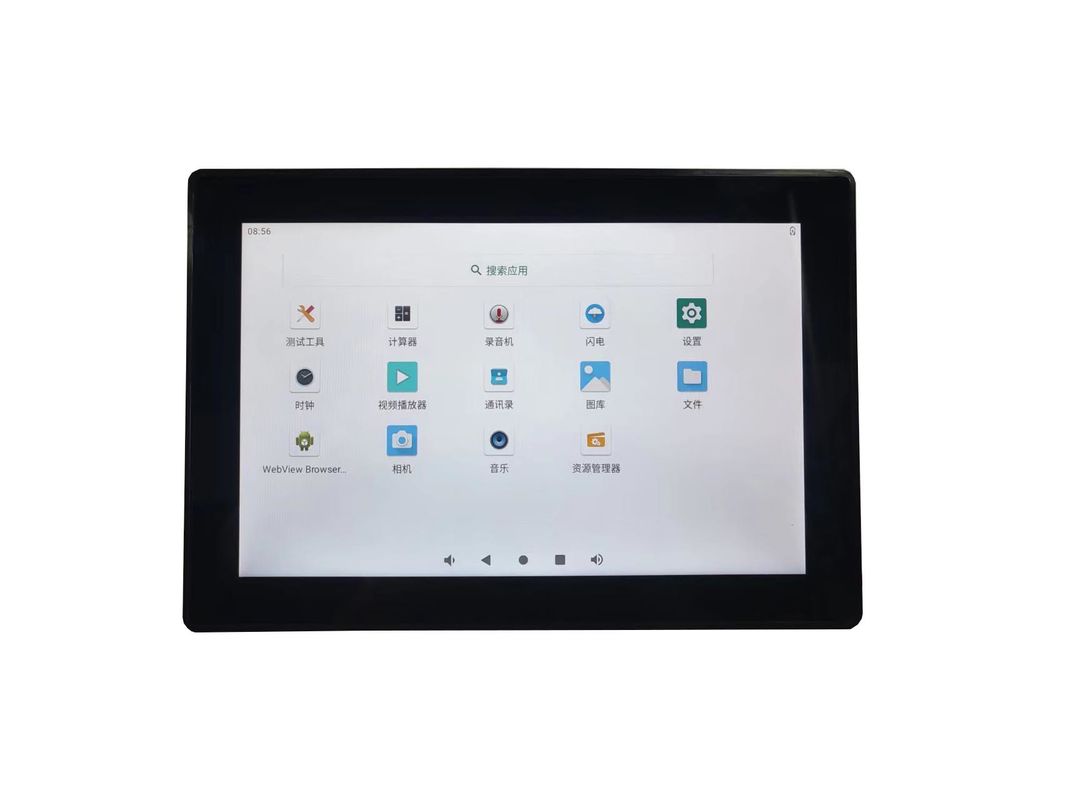

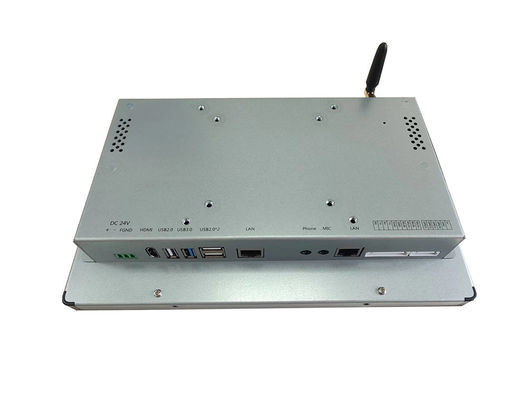

LYA101K20S-W is a high-performance embedded integrated touch screen with the industrial Rockchip RK3568 (quad-core A55 main frequency 2.0 Ghz) CPU as the core. The product features a high-resolution 10.1-inch LED LCD display (resolution 1280*1080) and a 10-point capacitive touch screen. It supports USB, Ethernet, DI / DO, RS232, RS485, CAN, WIFI, BT interface, etc. It is suitable for industrial automation control, HMI, small and medium-sized medical analyzer and other industry applications. Built-alone 0.8T NPU can be used for lightweight AI applications.
Product Performance
| Performance | Detail | |
|
System
|
CPU processor | RK3568 / Cortex A55 4 core main frequency at 2.0GHZ |
| Operating System | Android11.0/Ubuntu18.04/Linux 4.19 | |
| Running memory | 2GB/4GB | |
| EMMC | 16GB/32GB/64GB/128GB | |
| GPU | Mali-G52 1-Core-2EE | |
|
Display |
Size | 10.1 Inch |
| Resolving power | 1280*800 | |
| Touch form | Capactive 10 touch | |
| Luminance | 350 cd/ m² | |
| Angle of view | Full perspective | |
|
Material |
Material quality | Plastic face frame, metal back cover |
| Way to stall | Flat, outer, embedded | |
| IP protection grade | Industrial grade IP65 dustproof and water proof (operating face) | |
|
Power |
Power interface | 3 PIN*2.54mm terminal DC24V provides power supply |
| Power input | 12-30V Recommended value of 24V | |
|
Environmental Characteristics |
Working temperature | -10℃ ~ 60℃ |
| Storage temperature | -20℃ ~ 70℃ | |
| Operating humidity | 5-90 RH% | |
| Serial port |
2 RS232,2 RS485 / 2 CAN switch; |
|
| Audio interface | Built-in 1 way 8 euro 5W dual channel speaker output; One 3.5mm audio output and one 3.5mm microphone input | |
| Gigabit Ethernet interface | 1 Route 10 / 100 / 1000 Mbps Ethernet port | |
| HDMI interface | 1-Way HDMI output | |
| TF | 1-Route TF card interface | |
| SIM card | 1 Standard drawer-type interface with reserved eSIM interface | |
| RTC | 1 Built-in supercapacitor | |
| WIFI/BT | 2.4G WIFI / BT4.2 | |
| 4G interface | The GPS function 4G module should be replaced | |
| GPIO | 4-way GPIO | |
| USB2.0 | 3*USB 2.0 | |
| USB3.0 | 1 Vertical USB 3.0 (switch through dial switch) | |
Warranty Instruction
Our company will provide you the following services with this card and invoice (or copy) in accordance with the provisions listed in this warranty card:
Company introduction
Wuhan Longyu Intelligent Technology Co., Ltd has a strong R & D, production, sales and management team. Relying on independently developed embedded computer software system and hardware platform technology, we have carefully developed a series of products, the main products include: man-machine interface touch screen, industrial tablet computer all-in-one, ARM industrial motherboard, industrial display, etc. We strive to promote the upgrading of China's manufacturing industry, the research and development of products are widely used in intelligent transportation, automation equipment, terminal self-help equipment, industrial control, electric power, military industry, finance, network security, Marine manufacturing, medical instruments, numerical control, instrumentation, scientific research and other industries, with many well-known enterprises at home and abroad to maintain long-term stable cooperation.
