Product Details:
|
| Size: | 12.5” | Screen Type: | Led |
|---|---|---|---|
| Maximum Resolution: | 1920x1080 (16:9) | Color Dispay: | 16.7M Colors |
| Brightness: | ≥250 Cd/m2 | Mounting Method: | VESA,MIS-E,C |
| Refresh Rate: | 60Hz | Operating Temperature: | -20℃~60℃ |
| Warranty: | 1 Year | ||

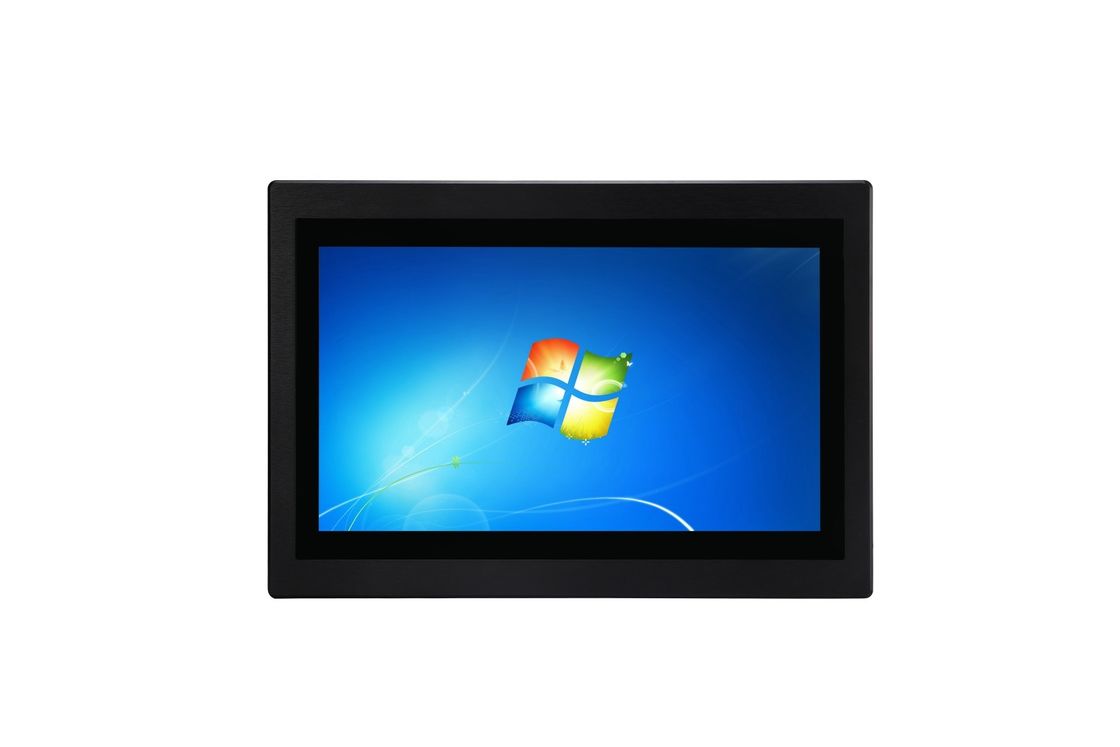

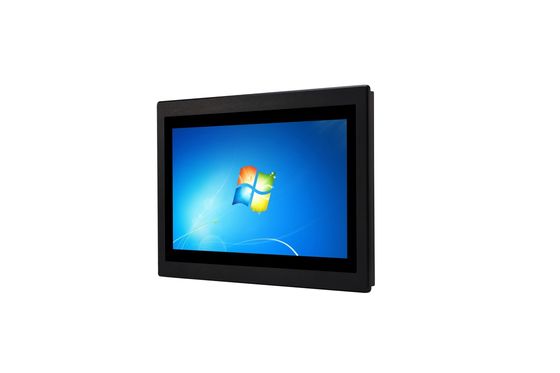

| High Light: | 12.5" IP65 Panel PC,IP65 Panel PC Rugged,Waterproof Resistive Touch Panel |
||
HD display color realistic, excellent workmanship and quality assurance, simple wireless space saving, ergonomic design is stable and reliable, widely used.
|
|
| Backlight technology | Led |
| Luminance | 250 cd/m2 |
| Contrast ratio | 3000:1 |
| Visual Angle | Horizontal: 178 / vertical: 178 |
| Response time | 25ms(GTG) |
| Display color | 262K(6bit) Colors |
| Display resolution | 1920x1080 (16:9) |
| Frequency of refresh | 60Hz |
| Input resolution | 1920x1080 @ 60Hz |

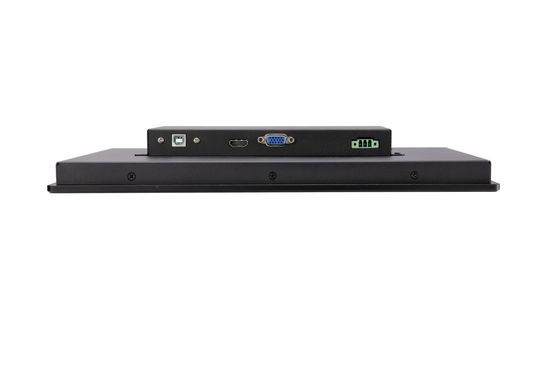

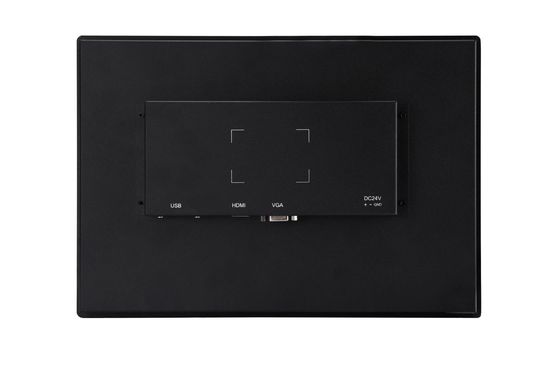

| Junctor | VGA / HDMI |
|
|
| OSD control | Button |
| OSD language | English, Chinese |
|
|
| Glass | 3mm black screen screen tempered glass |
| Touch point number | 10 |
| Touch technology | Projective capacitor (G + G) |
| The pen type | Fingers, hands with gloves, and a conductive stylus |
| Waterproof performance | Touch surface is not affected by water droplets or water vapor |
| Calibration | No calibration tool |
| Response time | 7ms-12ms |
| Interlinkage | USB2.0(Type B socket) |
| Multitouch control protocol support | Windows |
| Operating system | Win 7/8,Android,Linux |
|
|
| Dimension | 383 x 249 x 48 mm |
| Packing measurement | 685 x 155 x 475 mm |
| Weight (approx) | 6 kg / 8 kg |
| Wall hanging form | VESA,MIS-E,C |
|
|
| Power input | DC in: DC 12V3A (50/60 Hz) |
| Power | ≤ 25W (typ.) |
| Standby power | ≤ 2W (typ.) |
| Built-in speakers | 无 |
|
|
| Work environment | 0 °C ~ 40 °C, 90% RH |
| Storage environment | -20 °C ~ 60 °C, 90% RH |
|
|
| Other | Bracket / power cord / VGA cord / USB cord / power adapter |
